Alloy Wheel Cnc Lathe Ckl35 With High Lase Detection Speed - China

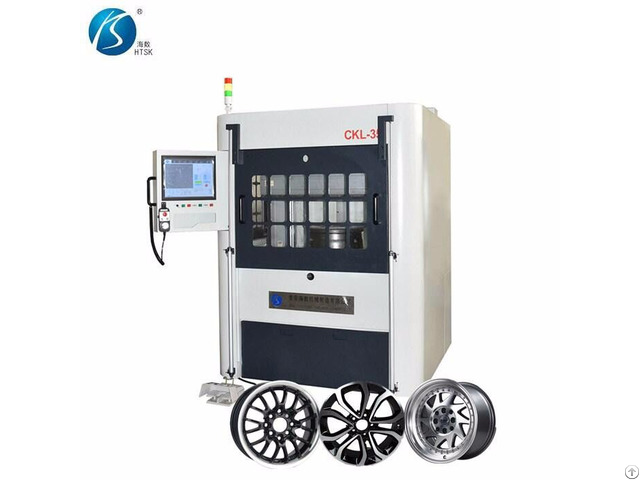

Alloy Wheel Cnc Lathe CKL35 with High Lase Detection Speed Alloy Wheel Cnc Lathe CKL35 with High Lase Detection Speed is designed and manufactured by Haishu Machinery, it is the first cnc vertical cnc lathe special for repair wheels in China.

Our vertical wheel repair lathe CKL-35 is made of fully cast iron lathe bed, self developed specific wheel repair software with teaching and curve automatic generation function, non-contact laser measurement or probe contact measurement an LCD touch screen.

The max wheel processing diameter is up to 35 “.

The CNC wheel repair machine features professionalism, high quality, cost effective and high automation.

Alloy Wheel Cnc Lathe CKL35 with High Lase Detection Speed Specifications No

Item

Unit

Specifications

1

Model Vertical Wheel Repair Lathe CKL-35

2

Max.

turning diameter

mm

1000

3

Max.

machining wheel diameter

mm

900(35″)

4

Chuck maximum clamping diameter

mm

920

5

Spindle speed (frequency conversion)

rpm

50-1200

6

Cutting feed rate

mm/min

0.1-1000

7

Turret vertical movement distance

mm

450mm

8

Turret horizontal movement distance

mm

±470

9

X axis fast moving speed

mm/min

1500

10

Z axis fast moving speed

mm/min

8000

11

Turret form 2 station row turret

12

Tool handle section

mm

25×25

13

Main motor power

KW

5.5

14

Feed motor

Nm

X: 6 / Z: 2×6

15

Positioning accuracy

mm

0015

16

Repeated positioning accuracy

mm

0.012

17

Machine Weigth

kg

1500

18

Machine Size

mm

2170*1700*2180 Alloy Wheel Cnc Lathe CKL35 with High Lase Detection Speed Features · Newly developed Vertical Wheel Repair Lathe by HAISHU Machinery for alloy car wheel repair and super finishing.

· Cast iron bed.

The wheel repair CNC lathe bed is made of cast steel in vertical structure.

· Large wheel processing diameter.

The max wheel processing diameter is up to 35 “.

· Self-developed special wheel repair control software.

Automatic wheel surface measurement and program optimization can be realized simultaneously.

· Laser non-contact measurement or probe contact measurement are optional.

Laser measurement enables fast scanning.

· Teaching function.

The overall wheel surface of can be repaired, but also can be partially repaired.

· LCD touch screen configuration · Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.

· Small machine tool space, professional CNC lathe for wheel repair.

· Professional after sale service including software free upgrade and remote operation and technical training on the machine’s LCD display.

· High performance, cost effective.

· Easy to operate and maintain.

Alloy Wheel Cnc Lathe CKL35 with High Lase Detection Speed Configurations · CNC system: “HAISHU” LCD touch screen CNC system · Laser probe · Precision spindle unit · Z-axis dual servo motor drive · X, Z axis linear guide · Precision screw vice · Software and hardware limit · Rail protection system · Automatic lubrication system · Air cooling system · Air gun · MPG · Warning lights · Full protection outer casing · Chip removal box · Pneumatic door · Long jaw chuck · 2 Station row turret · Z safety brake · Automatich pneumatic door machine video:

https: //youtu.

be/N9uax4UhtYI our factory video:

https: //youtu.

be/8hFrhikwwiQ
