Jks600b Crawler Mounted Versatile Well Drilling Rig - China

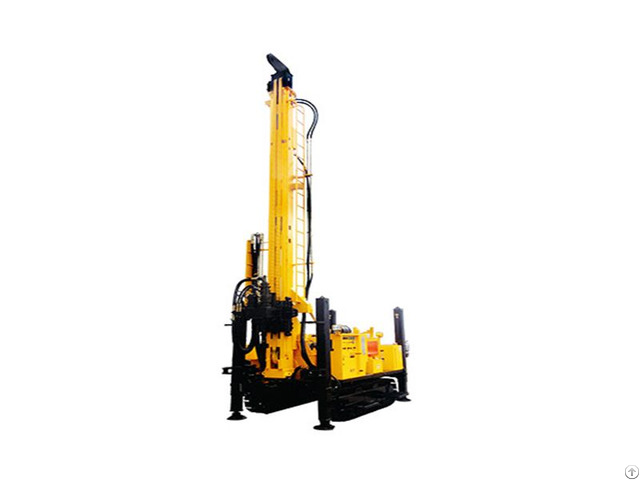

JKS600B Crawler Mounted Versatile Well Drilling Rig

Crawler Mounted Versatile Well Drilling Rig

hydraulic drill rig, hydraulic drilling rig

New, efficient, and versatile

Rated Drilling Depth

600m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes, dewatering boreholes, relief boreholes and gas layers and other exploitation projects.

Product Features

JKS600B crawler mounted versatile well drilling rig is a new, efficient and multifunctional drill rig, mainly applicable to the drilling process of wells, monitor boreholes, dewatering boreholes, relief boreholes and gas layers and other exploitation projects.

When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, the penetration speed being dozens of times quicker than conventional rotation rigs.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions.

Its versatility makes the rig suitable to various kinds of rigs.

Rated Drilling Depth 600m

Borehole Diameter 140~450mm

Engine Power 132kW

Max Lifting Force 30T

Lifting Force of Small Winch 1.5T

Lifting Force of Main Winch 4T(optional)

Rotation Torque 14000N.

m

Rotation Rate 0～40/80rpm

Feeding Stroke 5200mm

Lifting Rate 0～18m/min

Height of Centralizer 0.9m

Grade Ability 15°

Hydraulic Generator (optional) 24kW/380V

Flow of Foam Pump (optional) 20L/min

Flow of Centrifugal Mud Pump (optional) 1500L/min

Dimension (L x W x H) 8.1m x 2.25m x 3.0m

Working Size (W x H) 3.19m x 9.2m

Weight 14.1T
