Jks500c Crawler Mounted Versatile Well Drilling Rig - China

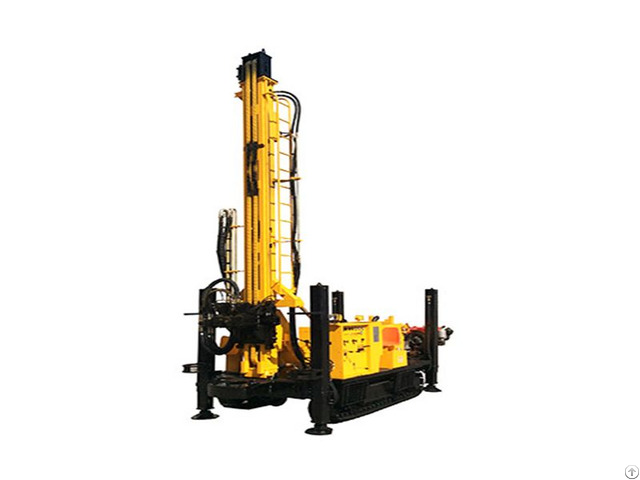

JKS500C Crawler Mounted Versatile Well Drilling Rig

Crawler Mounted Versatile Well Drilling Rig

hydraulic drill rig, Automatic Crawler Mounted DTH Drill Rig

A new, efficient, and versatile hydraulic percussive well rig

Rated Drilling Depth

500m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.

Product Features

JKS500C crawler mounted versatile well drilling rig is a new, efficient and multifunctional drill rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam, dam and reinforced base, as well as long hole drilling of open pit, anchor reinforcement and defense project.

The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.

Rated Drilling Depth 500m

Drilling Diameter 105-350mm

Working Air Pressure 1.05-4.5MPa

Air Consumption 16-60m³/min

Drilling Rod Diameter φ89mm, φ102mm, φ114mm

Max.

Lifting Force 25T

Axial Pressure ±10T

Lifting Force of Small Winch 1.5T

Lifting Force of Main Winch 4T (optional)

Rotation Torque 9500N.

m

Rotation Rate 0-40/80rpm

Feeding Force 3800mm

Lifting Rate 0-18m/min

Grade Ability 15°

Hydraulic Motor 24kW/380V (optional)

Flow of Foam Pump 20L/min (optional)

Dimension (L x W x H) 6800mm x 2250mm x 2650mm

Working Size (W x H) 3250mm x 7500mm

Weight 13T
