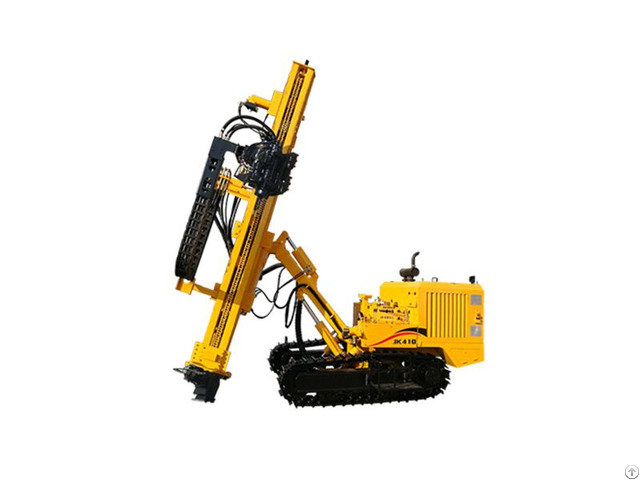

JK410 Crawler Mounted Pneumatic Tophammer Drill Rig

Tophammer Drill Rig

top hammer drilling rig, Crawler Mounted Pneumatic Drill Rig

Borehole Diameter

64-89mm

Site Condition

It is specially designed for the hydropower project and quarry mining project.

JK410 can drill boreholes of various angles, ranging from horizontal angle to vertical angle.

Product Features

JK410 is a new generation pneumatic tophammer drill rig, the latest updated products of the "Sharp Sword" series, specially designed for the hydropower project and quarry mining project.

JK410 can drill boreholes of various angles, ranging from horizontal angle to vertical angle.

It boasts its better performance, compact design, small footprint and humanized operation.

JK410 can be additionally equipped with dust collection system, and as long as water is accessed, wet type dust collection system is optional.

Borehole Diameter φ64-φ89mm

Drilling Depth 15m

Rock Drill Rod T38×3050

Travel Speed 2km/h

Rotation Rate 0-200rpm

Rotation Torque 280Nm

Feed Extension 1200mm

Feeding Stroke 4100mm

Feeding Rate 0-0.6m/s

Lifting Rate 0-1.2m/s

Grade Ability 20°

Lifting Force 18kN

Feeding Force 12kN

Rated Air Pressure of Rock Drill 0.5-0.6MPa
