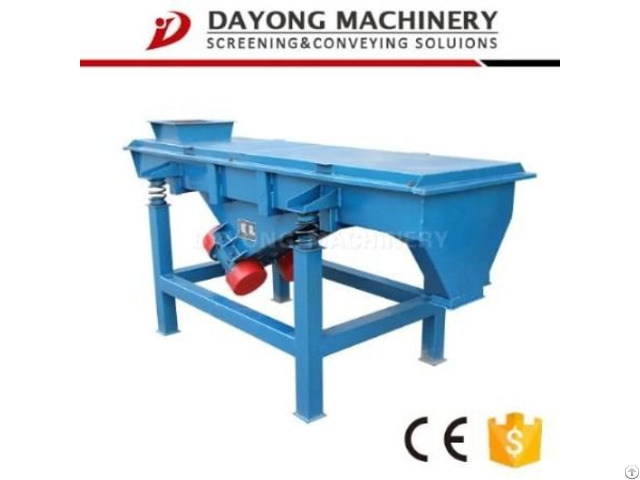

Wide Application Stainless Steel Sand Cement Linear Vibration Screen - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

Two vibration motors installed on the equipment which work in simultaneously and reverse rotation.

The screen box supported by the four springs produce reciprocating linear motion under the vibration force generated by the motors.

When the the vertical component of the vibration acceleration is greater than acceleration due to gravityg, material in the tank was thrown up, press forward to jump along parabolic path.

Each vibration of the tank, the material would be thrown up once.

In the process of encounter with the screen, the material which is smaller than screen mesh can go through it, so as to achieve classification purpose.

Main Features

1 - High precision fine screening.

2 - No mesh blinding.

3 - Enclosed structure to avoid air pollution.

4 - Low energy consumption and low noise (73-80 dB) .

5 - Large output capacity.

Using Scope

The linear vibrating screen is widely used in screening chemicals, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries in the dry powdered materials.

Company Profile

Xinxiang Dayong Vibration Equipment Co., Ltd. has specialized in the mining equipment manufacturing for 14 years.

Vibration screen is one of our flagship products.

The place we locate, Xinxiang city, is the home of vibration screen in China.

Based on this, we grow up stronger and stronger.

14 Year-experienced skill ensure our product a stable structure and better performance.

Among so many products from us, vibration screen is the most popular one and enjoy a really good reputation and feedback from our customers from all over the world.

Our Service

1 - 100% product quality guarantee

2 - Quick delivery time

3 - Promptly reply you within 24 hours

4 - OEM service 5 - Giving best service and sincere greetings to our guest
