Talc Powder Grinding Mill - China

We are a leading manufacturer of Talc Powder grinding Mill in Shanghai, China.

As a professional manufacturer of this kind of machine, we have been in this line for many years, and now our products spread over the world for the good quality and competitive price.

Talc Powder Grinding Mill is a new type machine to grind Talc Stone into super thin Powder.

The final Powder size can be from 5micron to 47micron as per 97% passing rate.

Talc Powder grinding mill is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness scale under seven, such as calcite, chalk, limestone, dolomite, carbon black, bentonite, kaolin, talc, mica, magnesite, illite, pyrophyllite, roseite, sea-foam, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice etc.

totally more than 100 kinds of materials.

Finished powder products are in the 325meshs -3000meshs, and yield can be up to 0.5-12 tons per hour.

There are five types of Shanghai CLIRIK HGM series talc powder grinding mill, they are HGM80, HGM90, HGM100, HGM100A and HGM125 - Detailed Product Description about Talc powder grinding mill, talc micro powder grinding mill

Talc powder grinding mill is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six.

Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, and talc etc, totally more than 100 kinds of materials.

Product fineness can be controlled between 300~3000 mesh (47~5 micron) Comparable with ball mill, Talc powder grinding mill has features of low cost, high capacity, easy operation; Comparable with Raymond mill for coarse powder up to 325 meshes, it can produce fine powders between 47 and 5 microns (300 to 3000 meshes)

Production Line Configuration of Talc powder grinding mill, talc micro powder grinding mill

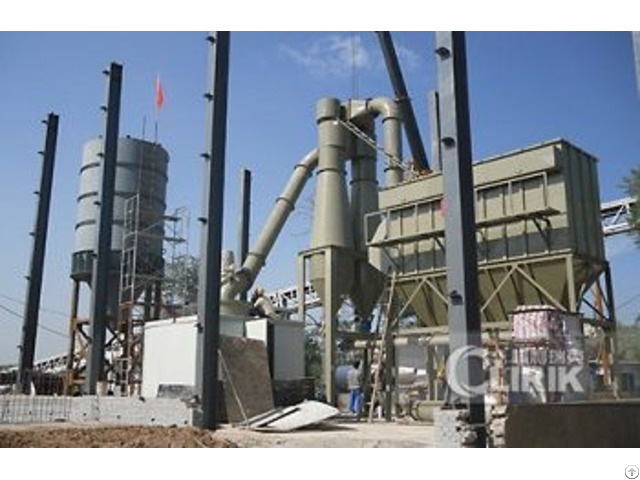

The whole set HGM Talc powder grinding mill consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems Working Principle of Talc powder grinding mill, talc micro powder grinding mill

The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger.

After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe.

The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings.

The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier.

The rotating turbo in the powder concentrator will make the coarse powder return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it.

The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
