Sus304 Gum Powder Linear Vibrating Screen - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

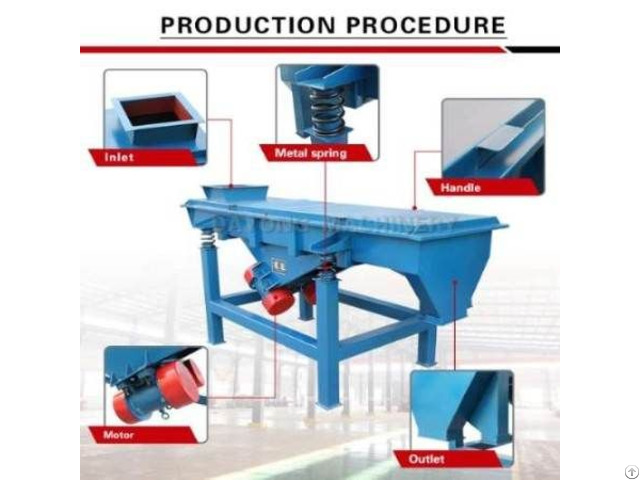

Multi-layer powder linear vibrating screen is for double vibration motor drive, By using of vibration motor excitation working principle.

when the two motors do synchronous, reverse rotation, Vibration produced by the eccentric block in parallel to the direction of the motor axis offset each other, in the direction perpendicular to the motor shaft superimposed as a joint force, so the sieve machine movement track is a straight line.

Main Features

Amplitude, frequency and exciting force etc., these vibration parameters settings are suitable and reasonable, each part structure has large stiffness, strong exciting force, high efficient vibration, and large material capacity .

The screen hole is different to block, low vibrating noise, easy to maintenance, stable to pass through the resonance region, long service life, performance is safe and reliable.

Using Scope

Linear sieve machine is suitable to sieving and grading powder or granule, widely used in many industries, such as ceramic, food, pharmaceutical, plastic, grinding material, mining, chemical, medicine, building material, and fertilizer industries.

Vibratory screens can be provided with dust proof cover as required.

Vibrating screen can be supplied of different sizes depending upon capacity required.

They can also handle slightly wet material.

Company Profile

We have excellent professional and technical staff, strong technical force, complete processing equipment and perfect detection means.

We not only provide customers with high quality production equipment, but also provide customers with full range services of ore dressing, smelting, production line design, installation debugging, technical guidance, personnel traning with a complete and comprehensive program.

Our Service

Pre-sale service: We will provide you with the prior plan, process flowchart design and production equipment in line with your special needs.

Sale-service:

We will send technicians to you for guiding the equipment installation, commissioning and staff training.

After-sale service: We will regularly pay return visit to customers for establishing a long-term and friendly relationship.

All machines have one year warranty to make sure your machine work well.
