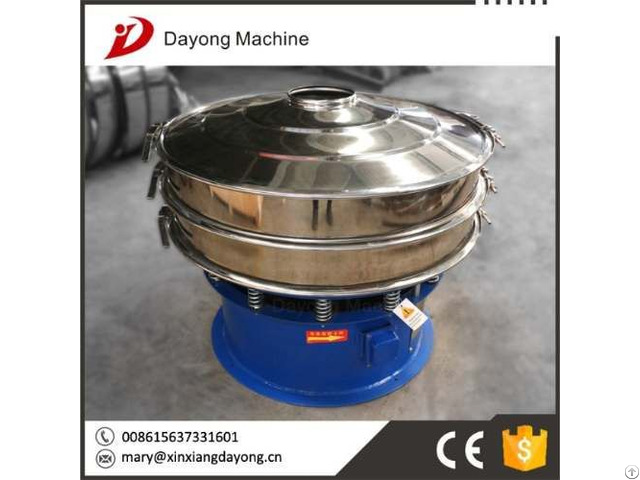

Sus 304 Material Food Grade Rotary Vibration Screen - China

Product Parameters

Condition: New

Type: Circular

Model: as your requirement

Power: 0.55kw

Voltage: 220v/380v/450v

Dimension (L*W*H): 700*800*790mm

Weight: 170kg

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

Rotary vibrating screen consists of upper part and lower part connected with steel springs.

Upper part is composed of screen frame, round platform and vertical vibration motor, it is the working part of the equipment; lower part in loading-bearing role in the equipment.

Rotary vibrating screen adopts vertical vibration motor as vibration source.

Its exciting force can make the materials spread evenly to all sides from center feed inlet in order to achieve high screening effciency.

Main Features

1 - With the structure of sealing completely.

The noise is low and no powder pollution.

2 - This series can be customized for clients, regardless of width, length, height, materials.

3 - This model can be supplied of different sizes depending upon capacity required.

4 - Fully enclosed structure avoids dust overflow that reaching the request of sanitation.

5 - Long residence time of the processing materials on the screen brings high screening accuracy.

6 - Up to 6 screen surfaces can be mounted on one unit that providing 7 predetermined fractions in a single operation.

Using Scope

1 - Food industry: sugar powder, starch, salt, rice noodles, milk powder, etc.

2 - Metals: Metal powder, alloys, ceruse, copper powder, ore alloy powder, etc 3 - Ceramics: Ceramic powders, kaolin clay, lime, alumina, etc.

4 - Environment: disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.

5 - Coatings: Powder coatings, pigment paints, etc.

Company Profile

We have excellent professional and technical staff, strong technical force, complete processing equipment and perfect detection means.

We not only provide customers with high quality production equipment, but also provide customers with full range services of ore dressing, smelting, production line design, installation debugging, technical guidance, personnel traning with a complete and comprehensive program.

Our Service

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.
