Sesame \tea\ Hot Selling Linear Vibrating Screen - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

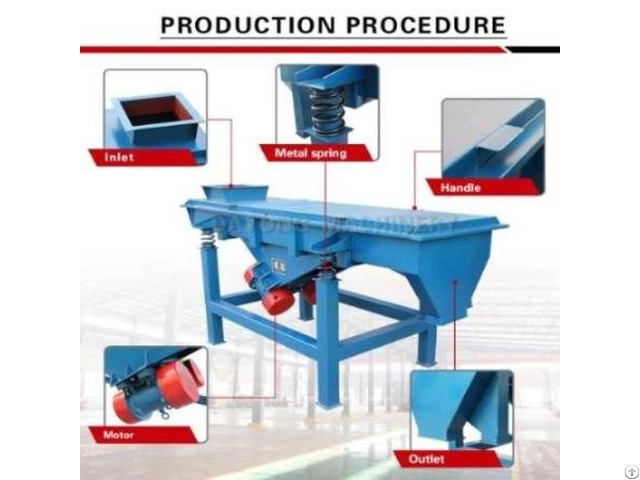

DZSF series linear vibrating screen has dual vibration motors.

When two vibrating motors do synchronized reverse rotation, the eccentric excitation force generated by offset each other in a direction parallel to the axis of the motor, the motor shaft in the direction of a force in the vertical stack, so the trajectory of the screening machine is a straight line.

Two motor shaft relative to the screen surface with a dip in the vertical direction, under the joint effect of the excitation force and material self-gravity, the material is thrown forward in a straight line or jump in the screen surface, so as to achieve the purpose of screening and classification of materials .

Suitable particle size 0.074-5mm, less than 7% moisture content, a variety of powdered or granular dry screening of non-adhesive material.

The maximum feed size is not more than 10mm.

Main Features

1 - Rapid to replace the mesh, rapid tension.

2 - High efficiency, low noise.

3 - The way that materials are on the screen surface is long, high screen fineness, large handling capacity.

4 - Screen and classify materials, at the same time, transport materials in a long distance.

5 - According to the particle size, probability through the sieve, productivity, we can change the screen spacing and dip angle.

6 - We can design different sizes and structures according to the production site.

Using Scope

Linear vibrating screen machine is very suitable to screen and grade the powder or granule, and widely used to many industries, such as plastic, grinding, chemical, medicine, building materiel, food, carbon and chemical fertilizer etc.

Company Profile

Xinxiang Dayong Vibration Equipment Co., Ltd. is professionally engaged in the production of vibrating screen equipment for more than 14 years.

Our machines has been exported to USA, Vietnam, Ausralia, Indonesia, Sri Lanka, South Africa and other countries.

We always supply equipments to the famous companies in China.

1 - Our company is known as " Chinese National Quality Trustable Products " for many years.

2 - We have been praised as " The National Customer Satisfaction Enterprise in Quality and Service" .

3 - We have attained ISO9001: 2000 quality system certification.

Our Service

Localized Service:

Worldwide offices and agents provide localized sales and technical service.

Professional technical service:

Professional technical team provide optimum solutions and early stage laboratory tests.

Perfect after sales service:

Assembly, commissioning, training services by professional engineer.

Prompt Delivery:

Good production capacity and spare parts stock realize fast delivery.

Company Contact:

• Posted By: xinxiang dayong vibration equipment co.,ltd

• Phone: 8603733669003

• Address: The Fifth Room From West, 1st Floor, Building 18, , xinxiang , China

• Email:

• Website: http://www.zhendong-shai.com

• Business Description: We are direct factory which is also the first domestic production of vibrating screen equipment manufacturers.

  Our company mainly manufactures vibration screen , belt conveyor, screw conveyor.

  bucket elevator, crusher.
