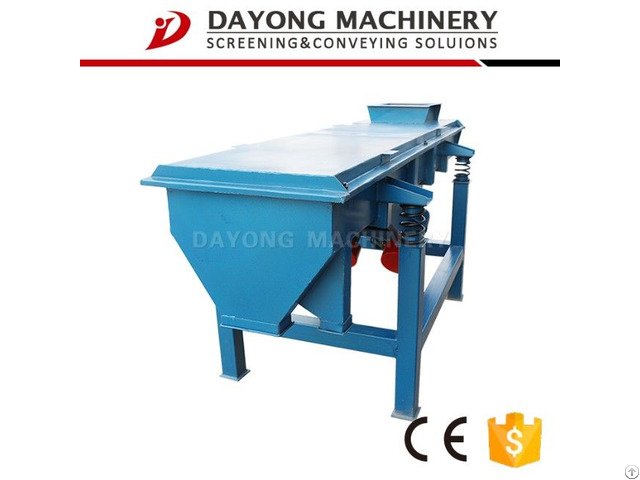

Sand And Gravel Linear Vibrating Sieve Machine - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Place of Origin: Henan, China (Mainland)

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

When the two vibration motor to do synchronization, reverse rotation, the exciting force generated by the eccentric block in the direction parallel to the motor axis offset each other and in the direction perpendicular to the motor shaft stacked together, so the movement trajectory of sieve machine is a straight line.

The two motor shafts have an inclination angle in the vertical direction.

In the exciting force and the self-gravity of the material, the material is jumped on the screen surface or moves forward straight forward, so as to achieve the purpose of screening and grading the material.

Main Features

1 - Rapid to replace the mesh, rapid tension.

2 - High efficiency, low noise.

3 - The way that materials are on the screen surface is long, high screen fineness, large handing capacity.

4 - Screen and classify materials, at the same time, transport materials in a long distance.

5 - According to the particle size, probability through the sieve, productivity, we can change the screen spacing and dip angle.

6 - We can design different sizes and structures according to the production site.

Using Scope

Linear sieve machine is suitable to sieving and grading powder or granule, widely used in many industries, such as ceramic, food, pharmaceutical, plastic, grinding material, mining, chemical, medicine, building material, and fertilizer industries.

Vibratory screens can be provided with dust proof cover as required.

Vibrating screen can be supplied of different sizes depending upon capacity required.

They can also handle slightly wet material.
