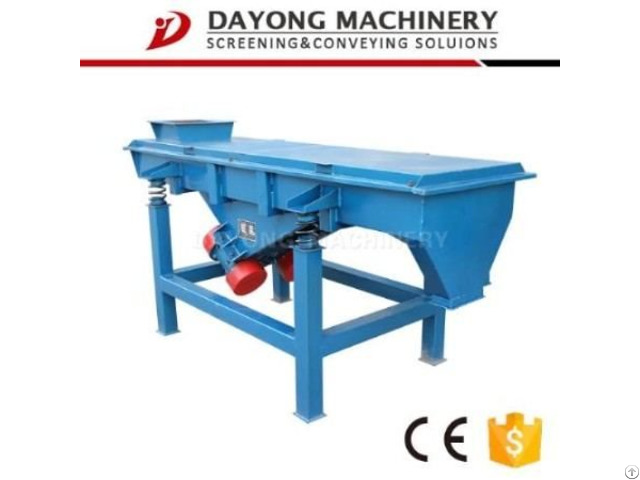

Manufacture Linear Vibrating Screen For Egg Powder - China
price: 1500.00 Dollar US$
Product Parameters
Condition: New
Type: Linear
Power: 2*0.75kw
Voltage: 220v/380v/415v/450v
Dimension (L*W*H): 2200*700*1100mm
Weight: 460kg
Product Capacity: 500-2000kg/h
Certification: ISO9001 & CE
Warranty: 18 months Working Principle
1 - The vibrating source is also from vibrating motor.
2 - There are two motors to be fixed on the both side of screening box(or under the screening box) to corotate by the contrary direction.
In the process of rotating, the eccentric blocks of motor will emerge a kind of centrifugal force, which can be transmited to the screening box and make the machine run by linear direction.
3 - Then the material on the mesh will be vibrated forward and screened.
By choosing the suitable mesh, the screening target is realized.
Main Features
1 - Screen surface material is evenly, and equal thick, high screening efficiency.
2 - Single-axis drive, strong power, can single axis overhaul and won’t affect the operation.
3 - Each sieve shaft are arranged cleaning device evenly, not easy to block sieve.
4 - Low noise, small vibration, good sealing performance.
5 - PLC procedure control, sieve shaft can start up on load orderly.
6 - Enables centralized control, also may be operated on site.
Using Scope
The linear vibrating screens are used in many industries, such as, steel making, mining, quarrying, foundries, food processing and chemical industry for the separating of bulk materials like stone aggregates, different kind of sand, active carbon and other materials.
Company Profile
Dayong company founded in 2003, 14 years of development history, gradually improve and integrate industrial chain; Main products include screening machinery, vibration equipment, crushed coal machinery, filtration equipment, dust removal equipment and other industries.
With the national patents, is a design and production capacity of integrated machinery manufacturing company.
Our Service
1 - Design as your request.
2 - Any problems, please feel free to tell us.
3 - We will offer you the perfect design with competitive price.
4 - Provide technical support unconditionally.
5 - Providing solutions according to the real situation.
Company Contact:
- Posted By: xinxiang dayong vibration equipment co.,ltd
- Phone: 8603733669003
- Address: The Fifth Room From West, 1st Floor, Building 18, , xinxiang , China
- Email:
- Website: http://www.zhendong-shai.com
Published date: October 26, 2017
- Business Description: We are direct factory which is also the first domestic production of vibrating screen equipment manufacturers.
Our company mainly manufactures vibration screen , belt conveyor, screw conveyor.
bucket elevator, crusher.
