Linear Vibrating Screen Used For Sand Particle Grading - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

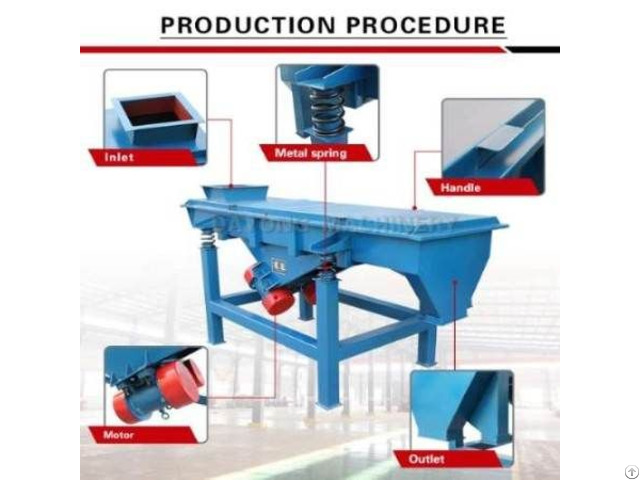

1 - The vibrating source is also from vibrating motor.

2 - There are two motors to be fixed on the both side of screening box(or under the screening box) to corotate by the contrary direction.

In the process of rotating, the eccentric blocks of motor will emerge a kind of centrifugal force, which can be transmited to the screening box and make the machine run by linear direction.

3 - Then the material on the mesh will be vibrated forward and screened.

By choosing the suitable mesh, the screening target is realized.

Main Features

1 - Screening efficiency is high, the design is clever, suitable for a variety of material screening

2 - No jam for the screen net, no powders flying around and no liquid leaking out when running, fully sealed structure and environmentally friendly.

3 - Small size and easily discharge.

4 - The screen nets are uniquely designed under 500 mesh.

5 - It only takes 3~5 MINS to replace and clean the net conveniently.

6 - Stainless steel parts contacting materials.

7 - Easy to maintain, easy to operate, suitable for continuous production line.

Using Scope

1 - Chemical industry: resin, pigment, cosmetic, coatings, medicine powder.

2 - Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup.

3 - Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.

4 - Medicinal industry: all kinds of medicine.

5 - Recycle: disposed oil, disposed water, disposed dye waste water, active carbon.

6 - Pharmaceutical industry.

Company Profile

Xinxiang Dayong Vibration Equipment Co., Ltd, focuses on researching and designing of high efficiency, energy saving, environmental friendly vibration equipments from 2003.

Now we have 14 years professional experience in the production of vibration equipment, including research and development, design, manufacture, sales and installation of the equipment for screening and sorting.

Our continuous development motivation is "To be the first-class screening expert in the world, to return our world green".

Our Service

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.
