Linear Vibrating Screen For Garnet Sand In Abrasive Industry - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

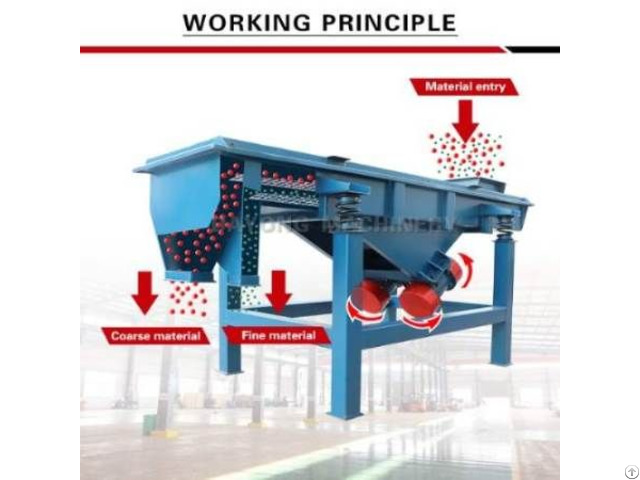

DZSF series linear vibrating screen use the vibration motor installed at the bottom of it as vibration source.

When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force.

Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration.

In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time.

The materials enter into the feed port, go through the multilayer screen cloth, then different size of materials was separated out from different outlet.

Main Features

1 - Good tightness, little dust spills.

2 - Less energy consumption, low noise and long life screen.

3 - Screening of high precision, large capacity, simple structure.

4 - Completely closed structure, auto-nesting, more suitable for pipelining.

5 - Sieve body parts are made of rolling welded steel plate and profiles (part of ligand for the bolt connection), so the overall stiffness is good, solid and reliable.

Using Scope

With Best Quality industrial vibrating sieve is widely used in:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Abrasive material and Ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

Company Profile

Xinxiang Dayong Vibratory Equipment Co., Ltd. with its unremitting efforts in good product quality has high returns:

*In 2005 once passed the industry authority of the international ISO9001.

*In 2011 obtained CE certification.

*Product quality has always maintained the leading level in the domestic industry, access to national high-tech enterprises, National Internet and industrial integration of innovative pilot enterprises, bank credit rating AAA grade enterprise and other honors.

Our Service

1 - We provide you with the prophase plan, process flow design and manufacturer

equipment according to your special demand.

2 - Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3 - We provide one-year warranty to make sure your machine runs consistently.

repair main parts under right using for free in two years.

Welcome to visit our factory anytime !!! We will be very happy to provide our best prooduct and professional service for you! Thank you!
