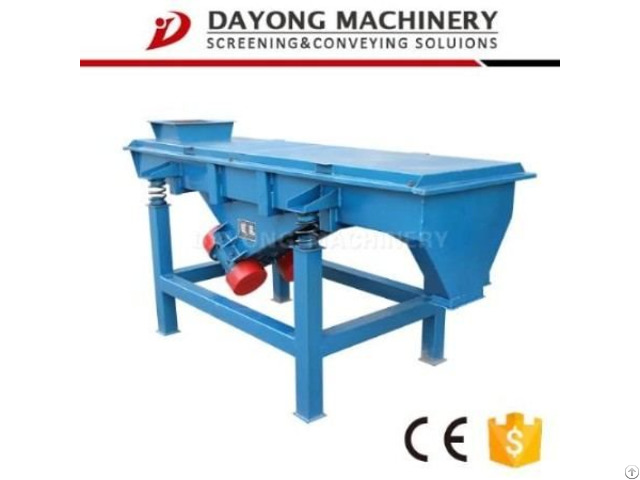

Linear Vibrating Screen For Activated Carbon Granules - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

1 - uses double vibrating motorsto drive, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and united as one across the motor axis direction, so its movement trajectory is linear.

2 - There is an angle of inclination two motor axises relative to screen deck, under the influence of resultant force of exciter force and materials self weight, materials are throwed up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials.

Main Features

1 - Easy to operate and maintain.

2 - Low consumption with high yield and low cost.

3 - Fully enclosed structure, automatic layout, more suitable for pipeline operations

4 - Good sealing without dust flying.

5 - Can be used for single or multi layer.

6 - Material auto discharge, be able to continuous operation.

7 - Every part of the screen box used copper plate and section welded together.

Using Scope

Linear vibration particle sieving machine is the efficient new screening equipment widely used in mining, coal, metallurgy, building materials, refractory materials, light industry, chemical industry.

Company Profile

Xinxiang Dayong Vibration Equipment Co, .

Ltd, which is established in the year of 2003, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts.

we committed to solve all kinds of sieving problem.

Our tenet: "market oriented, technology based, quality of survival, innovation and development ".

Dayong sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.

Our Service

The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller engineer.

We will send some free set of spare parts for you change it.
