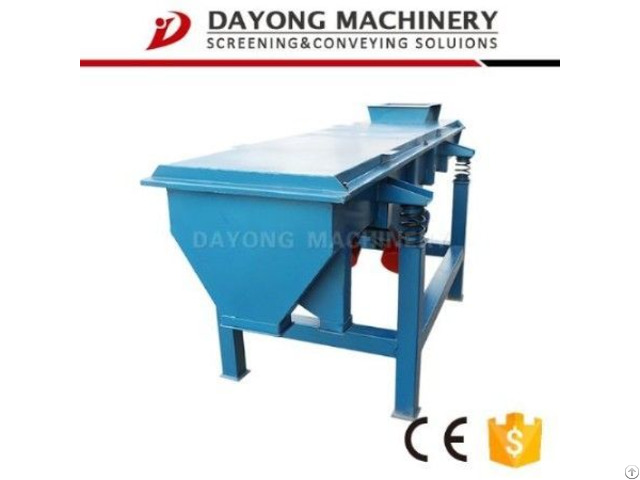

Large Capacity Linear Vibrating Sieve Machine - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

Linear vibrator screen sieve equips double vibrating motors, which rotate reversely and synchronously.

Thus, the excited force geneated by the eccentric block is united in the direction perpendicular to the motor axis while counteracted in the direction parallel to the motor axis, so that the movement trajectory is linear.

There is an angle of inclination between two screen decks.

Under the function of resultant force generated by exciter force and gravity of materials, these materials are throwed up, leap forward straight ahead along the screen deck, through which the purpose of filter and classification is achieved.

Main Features

1: Easy to operate and maintain.

2: Low consumption with high yield and low cost.

3: Fully enclosed structure, automatic layout, more suitable for pipeline operations.

4: Good sealing without dust flying.

5: Can be used for single or multi layer.

6: Material auto discharge, be able to continuous operation.

Using Scope

The linear vibrating screen is widely used in screening chemicals, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries in the dry powdered materials.

Company Profile Our Service

1 - During the installation and commissioning, we shall send our technician to the site for guiding the installation and commissioning.

2 - During the installation and commissioning, we offer training service

3 - The quality assurance date is one year after commissioning.

4 - If the equipments appear the equipment failure because of improper handling of user, we are in charge of maintenance, and collect the appropriate cost.

5 - We offer the components with favorable price, perdurable maintenance.

After quality assurance date, if the equipments need to be repaired, we only collect the cost price.
