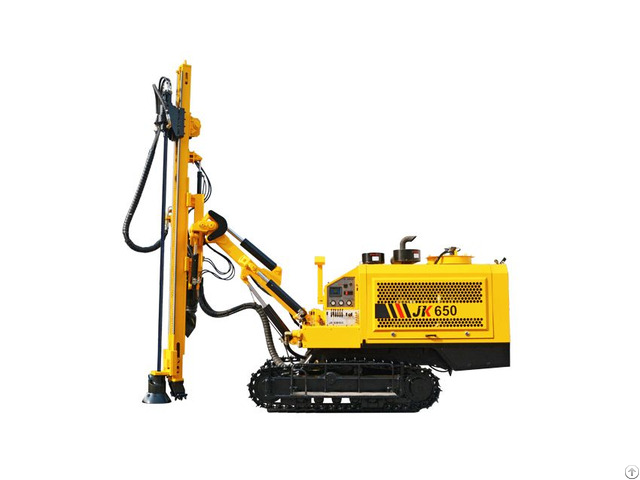

Jk650 All In One Dth Drilling Rig Jk - China

As the outcome of JK Drilling-Atlas Copco alliance applying expertise from both sides, the outstanding All-In-One drilling rig-JK650 can offer you a totally different drilling feeling.

All In One DTH Automatic Drilling Rig Machine Introduction:

JK drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation.

JK650 is the integration of drilling rig and air compressor, the design has many advantages like facilitating air compressor transport and management on mining site, retaining more air energy and requiring less manpower.

The equipped high-performance hydraulic dust collecting system meets the latest environmental protection regulations and it's a reliable solution to realize the modern green mining.

The high-output Atlas Copco air compressor delivers pressure of 17bar and FAD of 17m³/min.

Powerful and reliable, it suits rock formations of various hardness and offers high penetration rate with ease.

All In One DTH Automatic Drilling Rig Machine Parameters: General Weight kg 10000 Length mm 7863 Width mm 2400 Height mm 3080

Undercarriage Track width mm 300 Ground clearance mm 370 Track oscillation ° ±10° Walking speed km/h 2 (low) / 3 (high) Grade ability ° 27°

Engine Model QSC8.3-C260-30 Type Water-cooled six-cylinder EFI diesel engine Rated power kw/rpm 194/2100 Fuel tank capacity L 400

Air compressor Model Atlas Copco Working pressure bar 17 (high) Max.

FAD m3/min 17

Rotary motor Rotation rate rpm 0-70 Max.

rotation torque Nm 2904 Feeding method Motor-driven planetary gearbox + Chain Feeding force kN 12 Lifting force kN 18 Feeding stroke mm 4148 Feed extension mm 1200

Drilling depth & diameter Drilling diameter mm Φ90-Φ150 Drilling depth m 50 Pipe length m 3 Pipe diameter mm 76

Dust collector Collecting method Dry tpye hydraulic dust collecting (Optional wet type) Cheap Drilling Rig Machine For Sale, we guarantee product quality and delivery time!

Company Contact:

• Posted By: Jinke Drilling Machinery Co., Ltd

• Phone: 86-313-3884625

• Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou, Hebei Province,China, Zhangjiakou , Hebei , China

• Email:

• Website: https://www.jkdrilling.com/

• Business Description: We are dedicated to providing our customers with the best quality and high–tech products.

  Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

  The major products include JK series DTH rock drilling rigs and JKS series DTH well drilling rigs.

  The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.



  JK Drilling has established a mature and completed after-sales service team, who can provide the strong supports to clients and customers from both domestic and abroad.

  In drilling rig industry, JK Drilling's innovations have been relentless.

  It's dedicated to manufacturing the best quality and most innovative rigs for customers.

  JK Drilling boasts its R&D center, in which all kinds of drill rigs have been conceived and designed.

  In addition, JK Drilling is certified to ISO9001, ISO14001 and OHSAS18001.

  JK Drilling is located in Xuanhua, well known as the manufacture base of drilling rigs of China.

  Xuanhua enjoys its geographical convenience, bordering Beijing to the east, Shanxi Province and Inner Mongolia Autonomous Prefecture to the west.

  The Xuanhua-Datong expressway, Beijing-Zhangjiakou expressway and Dandong-Lhasa expressway converged in Xuanhua; Beijing–Baotou Railway passes through Xuanhua; highway 110, 117 and 207 links Xuanhua with other areas of China; From Xuanhua to Capital Airport of Beijing, the distance is 150 km.

  Recent years, JK Drilling's sales volume has been increased rapidly, its main products, Crawler Mounted Hydraulic DTH Rock Drilling Rig series, occupying 60% of domestic market share.

  So far, JK Drilling has established long-term cooperation with domestic customers and have exported its products to upwards of 30 countries.
