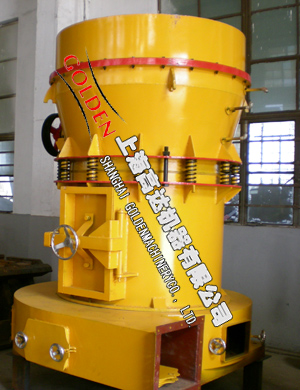

High Pressure Grinding Mill Repair Dressing Equipment - China

Efficient Micro-powder Grinding Mill During working process, axletree

seat and effiser air-in are bult on the main seat.

the antrum of mill is

on the effuser air-in, mult-layer dlal set on the main axle lies in the

middle of grinding antrum.

There are several rollers allstilburling

evenly on each dlal, a gear reduser and motor are set on the main

seat, while the power collector is set on the top of the antrum mill.

the

main motor drives main axle and every rotating by reducer, dall drives

numbers of rollers rolling and rotating in the ring by pinties.

Big

matirels are crushed into smaller particles by hammer crusher.

then they

are sent to store house by elevator, the electro-magnetic vibrating

feeder send the materials evenly to the middle of the upper dial, under

the function of eccentriclty, the materials scatter to the slde of the

clrcle and fall into the ring to be presed, cruched and milled into

pieces by rollers, aftre the first crush, material fall into the second

and the third layer, the pumping of the high-pressure centrilfugal

blower put the outside air into the machine.

the coarse power will be

brought into the classlfier.

Therotating turbine in the collector makes

the coarse particles fall back for regrinding , the fine particles will

come onto the cyclone collector with the airflow and be discharged by

the discharging valve on the bottom of the collector.

they are the final

products.

The airflow with little dust will be discharged through blower

and muffler after being purifled by the cyclone collector.

Applicability
