Hgm80 Ultra Fine Grinder - China

HGM80 ultra fine mill, HGM80 ultra fine grinder is the new type mining equipment for making micro powders, fine powders, which is widely applied in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics, and so on.

Production Line Configuration of HGM80 ultra fine mill, HGM80 ultra fine grinder:

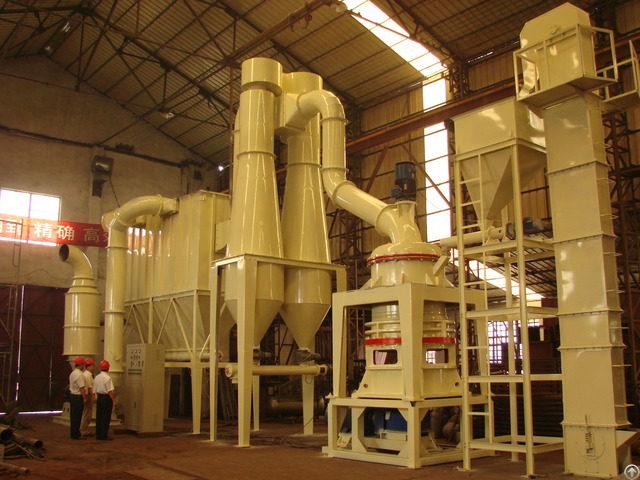

The whole set HGM80 ultra fine mill, HGM80 ultra fine grinder consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems.

Performance and features of HGM80 ultra fine mill, HGM80 ultra fine grinder:

1 - High efficiency

Under the same final size and power, the product capacity of ultrafine mill is twice than jet mill and agitation mill.

2 - Longer lifetime of spare parts

The roller and ring are made of special material, which improve the grinding efficiency a lot.

For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill.

Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.

3 - High safety and reliability:

There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.

4 - High fineness of products

The product fineness can reach D97<=5micron.

5 - Environment friendly

The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard.

The Application of HGM80 ultra fine mill, HGM80 ultra fine grinder:

HGM80 ultra fine mill, HGM80 ultra fine grinder (calcite carbonate ultra fine mill, chalk ultra fine mill, limeultrafine ultra fine mill, dolomite ultra fine mill, kaolin ultra fine mill, bentonite ultra fine mill, talc ultra fine mill, mica ultra fine mill, magnesite ultra fine mill, pyrophyllite ultra fine mill, ceyssatite ultra fine mill, barite ultra fine mill, gypsum ultra fine mill, alunite ultra fine mill, granite ultra fine mill, fluorite ultra fine mill, phosphate rock ultra fine mill, kalium ore ultra fine mill, float ultrafine ultra fine mill)is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six.

Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials.

Product fineness can be controlled between 325~3000 mesh.
