Heavy Calcium Carbonate Micro Powder Grinder - China

The application of Heavy calcium carbonate: Heavy calcium carbonate is white powder, colorless, tasteless.

Heavy calcium carbonate, referred to as farmers, is a natural carbonate minerals such as calcite, marble, lime stone mill broken into.

It is a common powder mineral filler, have high chemical purity.

Heavy calcium carbonate Usually used for packing, widely used in artificial floor tile, rubber, plastic, paper, paint, paint, printing ink, cable, building supplies, food, medicine, textile, feed, toothpaste and daily chemical industry, as filling agent have increased the volume of products, reduce the production cost.

Introducte of Heavy calcium carbonate micro powder grinder: —— five models: HGM80, HGM90, HGM100, HGM100A, and HGM125

——finished production fineness: 300meshes~3000meshes, 5-47 micron

——the capacity (ton/hour) ranges from 0.4T/H to 12T/H The application of Heavy calcium carbonate micro powder grinder: HGM Series ultrafine grinding mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Mohs's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

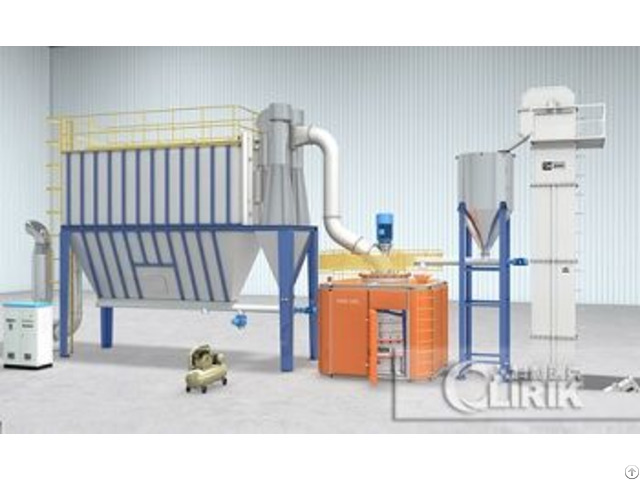

Working principle of Heavy calcium carbonate micro powder grinder: HGM series Heavy calcium carbonate micro powder grinder mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.

When the Heavy calcium carbonate micro powder grinder is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the Heavy calcium carbonate micro powder grinder and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector.

Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags.

At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve.

The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed.

In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
