Grinder Mill Machine In China - China
price: 80000.00 Dollar US$
Grinder mill machine is for super-fine grinding materials with hardness less than 6 in Moh‘s scale and humidity less than 6 percent such as kaolin, limestone, basalt, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds.
The granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H depending on the final size and the grinding materials.

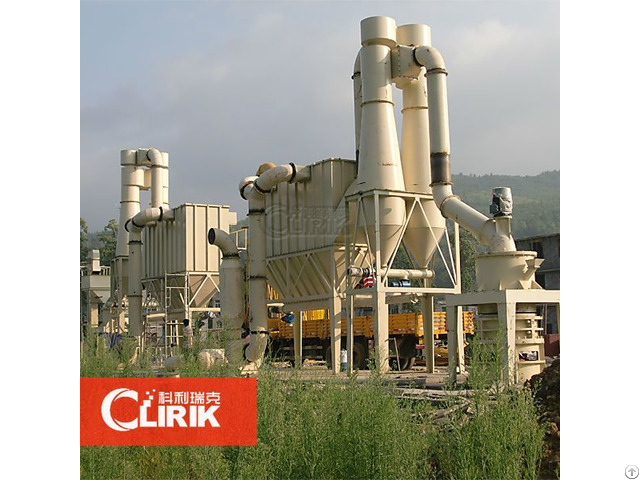

Working Principle of grinder mill machine: Grinder mill machine mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.
When the grinder mill machine is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
The high-pressure air blower constantly inhales air within the grinder mill machine and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector.
Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags.
At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve.
The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed.
In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
Company Contact:
- Posted By: Shanghai Clirik Machinery Co., Ltd
- Phone: 18001642498
- Address: Fuqing Rd, No.1, Heqing Town, shanghai , shanghai , China
- Email:
- Website: http://www.raymond-mill.com
Published date: October 18, 2019
- Business Description: Shanghai Clirik Machinery Co., Ltd, located in Pudong New Area of Shanghai, China, is a large professional manufacturer, specializing in research, manufacture and sales all kinds of grinding machinery, crusher, mining equipment and some beneficiation auxiliary equipment.
The stone grinding machine and crushers, such as Raymond Mill (Raymond Roller Mill) are widely applied in metallurgy, hydraulic engineering, mining, chemical, construction, coal, refractory, ceramic and other industries.
