Fine Sand Used Linear Vibrating Screen - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

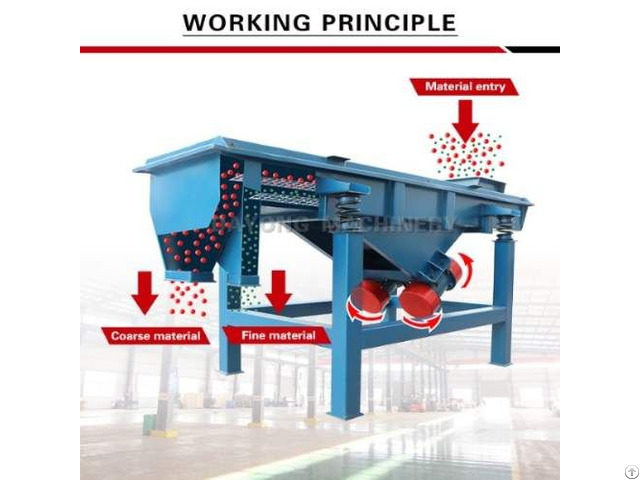

Warranty: 18 months Working Principle

DZSF series linear vibrating screen has dual vibration motors.

When two vibrating motors do synchronized reverse rotation, the eccentric excitation force generated by offset each other in a direction parallel to the axis of the motor, the motor shaft in the direction of a force in the vertical stack, so the trajectory of the screening machine is a straight line.

Two motor shaft relative to the screen surface with a dip in the vertical direction, under the joint effect of the excitation force and material self-gravity, the material is thrown forward in a straight line or jump in the screen surface, so as to achieve the purpose of screening and classification of materials .

Suitable particle size 0.074-5mm, less than 7% moisture content, a variety of powdered or granular dry screening of non-adhesive material.

The maximum feed size is not more than 10mm.

Main Features

1 - High efficiency, refined design, duration, any powders and mucilage are suitable for using.

2 - Standard vibrating screen has Good sealing property.

Frame have a dedicated connection with rubber, fastening with a locking band.

Dust does not spill.

It can get nationalenvironmental standards.

3 - Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations.

4 - Can screen very fine powder down to 500 mesh.

the most fine powder it filter is 5 micron.

5 - Standard vibrating screen has Unique net rack design.

Sieves can exchange easily in order to reduce staff's maintenance time.

Using Scope

With Best Quality industrial vibrating sieve is widely used in:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Abrasive material and Ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

Company Profile

Xinxiang Dayong Vibration Equipment Co., LTD is located in China's vibrating screen points of mechanical equipment - xinxiang (vibrating screen equipment of the township), is the production place of early professional vibrating screen manufacturers, with rich manufacturing experience, strong technical force, advanced and efficient management team.

Has a complete production equipment, sophisticated detection means, perfect after-sales service and a number of highly qualified technical personnel and scientific management mode, we set up a adapt to the factory actual modern enterprise management system and quality guarantee system.

Our Service

1 - Sale services

Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime and anywhere.

As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.

2 - After-sale services

Normally, the equipment warranty is 12 months since installation, but can extend as long as 18 months as the clients’ request.

Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed.

To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
