Drilling Mud Shale Shaker Solid Control Equipment Best Choice - China

Drilling mud Shale shaker Solid control equipment Best choice

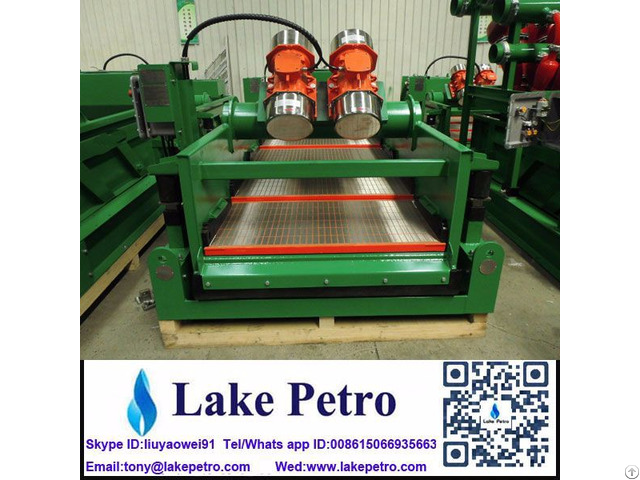

Product Description Shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system.

Solids Control can design double shakers and triplicate shakerson single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation, we provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.

shale shaker absorbed advanced tech at home and abroad, complete series shale shaker can meet customers’ variable demand.

Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.

No Designation

Shale Shake

Product parameter

1

Vibration mode linear type Motor power 1.94kwx2 Adjustable G force ≤ 8 G Vibiation Amplitude 4.4~6.34mm Deck angle range -1°~5 Recommend Capacity ≤140m³/H Screen Qty 4 ps Screen Size: L×W 585×1165mm Starting mode Magnetic start The total weight 1638Kg Dimension: L×W×H(mm) 2761×1998×1428mm

Product uses

and feature 1

Intensity vibration is as high as 8G, and can adjust, can effective dry drilling cuttings

2 Electric screen box Angle adjustment, convenient and reliable, and the mechanical Angle adjustment for standby

3

Screen box sealed patent design, good sealing effect, long service life, and easy to replace

4

Screen box at the bottom of stainless steel materials, corrosion resistance and greatly improve the service life

5

Screen box overall heat treatment, which can meet high vibration intensity work long hours.

Main Prooerties Patent shale shaker deck angle adjustable while working, mechanical deck angle adjustment with reliable performance.

Patent tighten rubber sealing for shale shaker deck and screen, long life and easy replacement.

Shale shaker bottom deck made from Stainless Steel for long service life.

Heat treatment on complete shale shaker deck for High G force operation.

Pretensioned shale shaker screen for fast screen replacement

Famous Brand Vibration Motors : IEC Ex, ATEX and UL Certified

Electrical components: SIEMENS, Schneider Brand

Flexible feeding type including Weir Feed, Top Feed, and Hopper Feed for different applications.
