Customized Coal Separator Super Size Linear Vibrating Screen - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Place of Origin: Henan, China (Mainland)

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

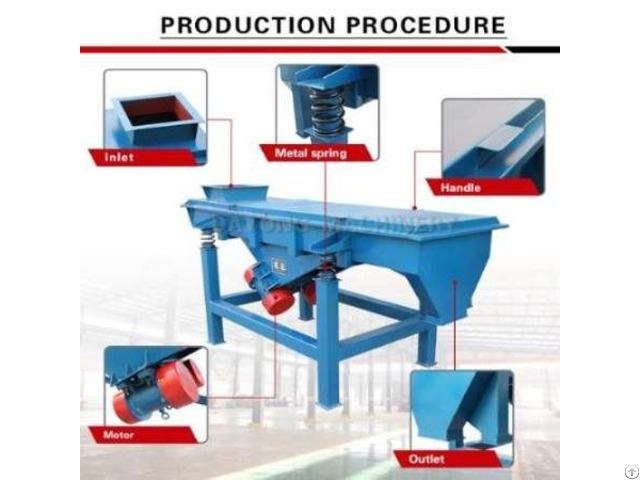

High efficiency liner vibrating screen uses double vibrating motors to drive, when two motors synchronous reversely rotate, exciter forces by eccentric block generating are undone in parallel with the direction of motor axises and relative to screen deck, under the influence of resultant force of exciter force and materials self weight, materials are throwed up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials.

Applied in flowing line to achieve automatical operation.

Main Features

1 - Small volume, Light weight, sample structure, easy installation and maintenance.

2 - Low noise and power consumption, High efficiency and low price.

3 - Screening high precision, it can screen to 200mesh or 0.074mm.

4 - Can replace to variety screen mesh, and with long lifespan.

5 - Good sealing sieve machine and powder less float.

6 - Impurity and coarse material automatic discharge and working continually.

7 - Screen box have wood and steel type, more selection.

Using Scope

1)Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2)Organic fertilizer industry.

3)Plastics industry.

4)Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

5)Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

6) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

7) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc Company Profile

We have excellent professional and technical staff, strong technical force, complete processing equipment and perfect detection means.

We not only provide customers with high quality production equipment, but also provide customers with full range services of ore dressing, smelting, production line design, installation debugging, technical guidance, personnel traning with a complete and comprehensive program.

Our Service

Pre-sale service: We will provide you with the prior plan, process flowchart design and production equipment in line with your special needs.

Sale-service:

We will send technicians to you for guiding the equipment installation, commissioning and staff training.

After-sale service: We will regularly pay return visit to customers for establishing a long-term and friendly relationship.

All machines have one year warranty to make sure your machine work well.
