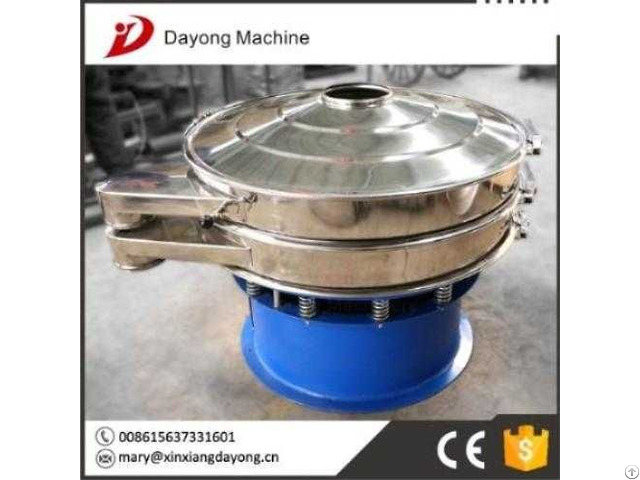

Chestnut Walnut Powder Dedicated Rotary Vibration Sieve - China

Product Parameters

Condition: New

Type: Circular

Model: as your requirement

Power: 0.55kw

Voltage: 220v/380v/450v

Dimension (L*W*H): 700*800*790mm

Weight: 170kg

Place of Origin: Henan, China (Mainland)

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

1 - Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source.

The eccentric hammers change rotation into horizontal, vertical and inclined three dimensional movement, and then pass the movement to the sieving surface.

2 - Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

Main Features

1 - Small size, light weight, saving space.

The direction of the discharge port can be adjusted, coarse, fine material automatically discharged.

2 - Screen mesh is not blocked, the powder is not flying, the smallest screen can be up to 500 mesh (28 microns), the smallest filter up to 5 microns.

3 - Single layer rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean.

4 - No mechanical action, easy maintenance, can be single or multi-layer use, contact part of the material is made of stainless steel (except for medical use).

5 - Any solid, liquid, powder, granules, slurry materials within a certain range can be screened.

Using Scope

1 - Chemical industry: resin, pigment, cosmetic, coatings, medicine powder.

2 - Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup.

3 - Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.

4 - Medicinal industry: all kinds of medicine.

5 - Recycle: disposed oil, disposed water, disposed dye waste water, active carbon.

6 - Pharmaceutical industry.

Company Profile

Our distinctive prodcts include shaking table, jig, spriral separator, gold concentrator, ball mill, jaw crusher, flotation, magnetic separator, feeder, classifier, ore washing machine and lab equipment ect.

Our machines are popular in separating gold, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, ect.

Our Service

1 - 100% product quality guarantee

2 - Quick delivery time

3 - Promptly reply you within 24 hours

4 - OEM service 5 - Giving best service and sincere greetings to our guest

Company Contact:

• Posted By: xinxiang dayong vibration equipment co.,ltd

• Phone: 8603733669003

• Address: The Fifth Room From West, 1st Floor, Building 18, , xinxiang , China

• Email:

• Business Description: We are direct factory which is also the first domestic production of vibrating screen equipment manufacturers.

  Our company mainly manufactures vibration screen , belt conveyor, screw conveyor.

  bucket elevator, crusher.
