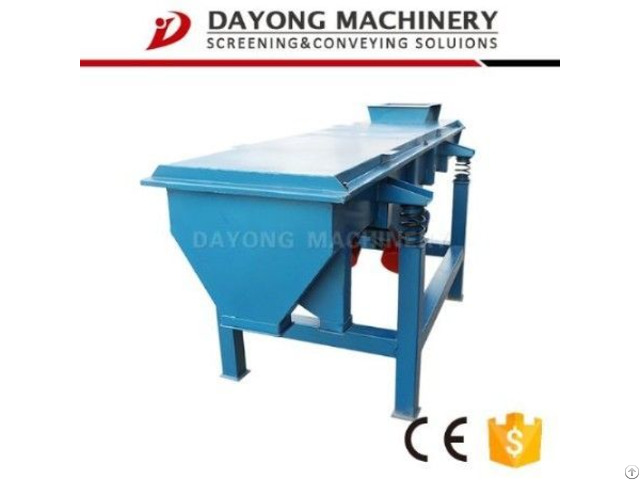

Best Quality Linear Vibrating Screen For Nuts Sesame - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

Uses double vibrating motors to drive, when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction, so its movement track is linear.

There is an angle of inclination between the two motor axises relative to the screen deck.

Under the influence of the resultant force of exciting force and materials itself weight, materials are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel.

Applied in flowing line to achieve automatical operation.

Main Features 1 - Low energy consumption.

2 - Large productivity.

3 - Simple structure and easy maintenance.

4 - Fully closed structure.

5 - No dust scattered.

6 - Automatic discharging.

7 - More suitable for assembly line.

Using Scope

1 - Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2 - Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, lurry, etc.

3 - Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4 - Papermaking industry: coated slurry, exhaust liquid, paper making liquid, waste water reclamation, etc.

5 - Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6 - Mechanical industry: casting sand, powder metallurgy, electromagnetic material, metal powder, etc.

Company Profile

Xinxiang Dayong Vibration Equipment Co., Ltd, ISO9001 certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.

At present, the main range of products include kinds of series of vibrating screens, vibrating separator-filter, ultrasonic vibrating screens, Sifting machines, filtering machines, linear vibrating screens, testing screens, vibrating conveyers, etc.

Our products have seven national patents.

The quality and technology of our products have reached the international advanced standard.

Our Service

1 - Perfect flow process design after many times communicating with clients' requirement.

2 - foundation drawing will be provided.

3 - Guarantee period: 1year except wear parts, such as meshes.

4 - experienced technicians will guide installation, debugging, initial run until the machine or plant runs smoothly and steadily.

5 - Spare parts will be provided on preferential basis after 1 year.
