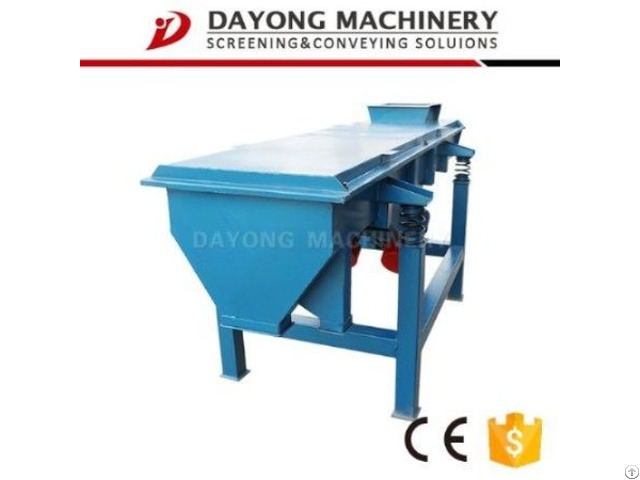

Bean Sprouts Linear Vibration Equipment Vibrating Screen - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

Linear vibrating screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device.

Through the flexible coupling, the motor drives the eccentric block of the vibrator at high rotary speed, generating the centrifugal force and then lead the screen box to do circular movement by the amplitude.

After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realize the purpose of classifying.

Main Features

1 - Advanced structure; firm and durable; stable running;

2 - Low motor power, generally 1/4-1/5 of that of other similar screen;

3 - High screening efficiency;

4 - Adjustable angle of screen surface;

5 - Low load transferred to the base, and no special treatment required for the base;

6 - Mainly suitable for screening the carbon.

Using Scope

1 - Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2 - Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, lurry, etc.

3 - Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4 - Papermaking industry: coated slurry, exhaust liquid, paper making liquid, waste water reclamation, etc.

5 - Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6 - Mechanical industry: casting sand, powder metallurgy, electromagnetic material, metal powder, etc.

Company Profile

We have excellent professional and technical staff, strong technical force, complete processing equipment and perfect detection means.

We not only provide customers with high quality production equipment, but also provide customers with full range services of ore dressing, smelting, production line design, installation debugging, technical guidance, personnel traning with a complete and comprehensive program.

Our Service

1 - One year guarantee for the whole machine

2 - 24hours technical support by email

3 - 24 hours online service

4 - Instruction in English language

5 - User manual in PDF and Printed copy

6 - Installation videos

Company Contact:

• Posted By: xinxiang dayong vibration equipment co.,ltd

• Phone: 8603733669003

• Address: The Fifth Room From West, 1st Floor, Building 18, , xinxiang , China

• Email:

• Website: http://www.zhendong-shai.com

• Business Description: We are direct factory which is also the first domestic production of vibrating screen equipment manufacturers.

  Our company mainly manufactures vibration screen , belt conveyor, screw conveyor.

  bucket elevator, crusher.
