Baobab Powder Processing Vibro Sieve Machine - China

Product Parameters

Condition: New

Type: Circular

Model: as your requirement

Power: 0.55kw

Voltage: 220v/380v/450v

Dimension (L*W*H): 700*800*790mm

Weight: 170kg

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

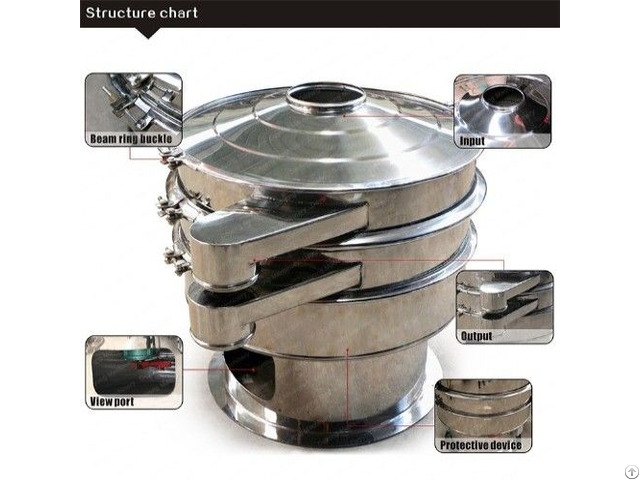

The round separator is driven by vertical electric motor.

An upper and lower adjustable eccentric weighted arm controls the motion of the unit.

These weights can be adjusted to suit nearly every need required by the industrial screening market place.

Our separator can be adjusted to take advantage of three motions simultaneously, vertical motion, horizontal motion and inclinational motion.

Main Features

1 - Excellent screening precision, and the blocking rate of the screen is less than 10% in average.

2 - The movement locus and vibration amplitude are both adjustable.

Any granular, powdery and serous materials could be roughly screened, or just filtered according to the material applications.

3 - The screening machine is 500-2000 mm in diameter, and the overall size is quite small.

Wheels can be mounted on it for convenient moving.

4 - Specially designed screen frame.

It takes only 5-10 min for the screen changing.

The stainless steel wire woven net is easy to clean and operate, while the life span is quite long.

5 - Completely enclosed structure is adopted so the particulate matter pollution in the air is quite limited.

Using Scope

1 - Food industry: sugar powder, starch, salt, rice noodles, milk powder, etc.

2 - Metals: Metal powder, alloys, ceruse, copper powder, ore alloy powder, etc

3 - Ceramics: Ceramic powders, kaolin clay, lime, alumina, etc.

4 - Environment: disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.

5 - Coatings: Powder coatings, pigment paints, etc.
