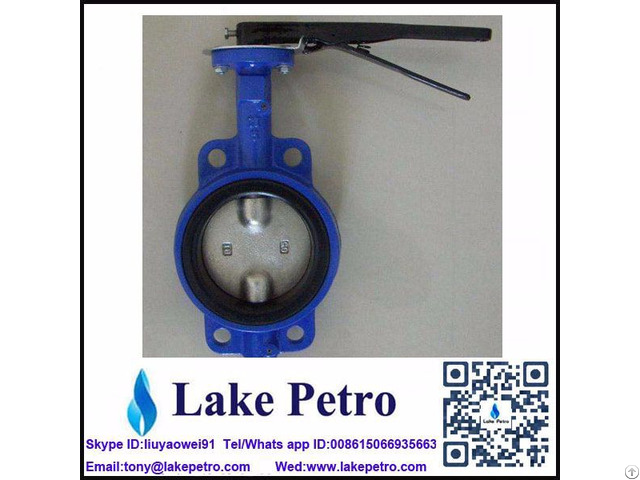

All size Butterfly valve Wafer type Manual Corrosion resistance

Product Description 1) Standards:

1 Design Standard conform to: MSS SP-67M API609, EN593

2 Connection flange conform to: DIN PN10/16/25 ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS10 Table E

3 Top flange conform to: ISO5211

4 Face to face conform to: API609, ISO5752 series 20, BS5155

5 Test standard conform to: API 598 2) Design Characters:

1 Rubber backed seat with stable valve torque.

2 Grooved sleeve design to achieve stable pisitioning

3 Simple construction, small in size, light in weight.

Easy disasembling, installation and maintenance.

4 Minimized operating torque.

Lewer, gear, pheumatic and electric actuators can be chosen.

5 Special design, high flow rate and low flow resistance.

6 Suitable madium: water, sewage, sea water, air, steam, foof, medicament, oils, acids, alkais, salts etc.

No leakage under the rated pressure.

3) Performance:

Nominal Diameter: Non-backed: DN50-DN300

backed: DN50-DN300, DN350-DN1200

Nominal Pressure PN(mpa): 1.0, 1.6, 2.0, 2.5

Testing pressure (water) Ps(MPa) Body seat: 1.5 times rated pressure

Seat test: 1.1 times rated pressure 3) Material List

No.

Parts Name 1 Body Cast iron/Ductile iron/ Stainless steel/Carbon steel

2 Disc AI-Bronze/Monel/CF8M/WCB/ Ductile Iron

3 Pin SS316/SS316/SS304

4 Seat EPDM/PTFE/Buna/Hypaton/Vi ton/Neoprene

5 Stem Cr13/SS 416/SS316/Carbon Steel

6 Bushing P.T.F.E./Lubricating

7 O-ring EPDM/Bunal/Hypalon/Viton/ Neoprene 4)Outline Dimension&Connection Dimension(mm)& Weight(kg)

Size A B C D d0 ISO5211 K E 4-d L D1 4-O N-M & B1 Weight(kg)

mm inch A LT A LT A LT 50 2'' 140 161 80 42 52.9 12.6 F07 92 70 10 30 125 4-19 4-19 90° 11 2.2 3.8 65 2.5'' 150 175 89 44.7 64.5 12.6 F07 92 70 10 30 145 4-19 4-19 90° 11 2.5 4.2 80 3'' 158 181 95 45 78.8 12.6 F07 92 70 10 30 160 4-19 4-19 45° 11 2.9 4.7 100 4'' 176 200 114 52 104 15.77 F07 92 70 10 30 180 4-19 8-19 45° 11 4.3 9.0 125 5'' 190 213 127 54.4 123.3 18.92 F07 92 70 10 32 210 4-19 8-19 45° 14 6.1 10.9 150 6'' 201 226 139 55.8 155.1 18.92 F07 92 70 10 32 240 4-23 8-23 45° 14 7.8 14.2 200 8'' 248 260 175 60.6 202.5 22.1 F10 125 102 12 45 295 4-23 8-23 45° 17 12.2 18.2 250 10'' 276 292 203 65.5 250.5 28.45 F10 125 102 12 45 355 4-27 12-27 22.5° 22 18.8 26.8 300 12'' 305 337 242 76.9 301.5 31.6 F10 140 102 12 45 410 4-27 12-27 22.5° 22 28.7 40
