Post Tensioning Wedge

Product Description

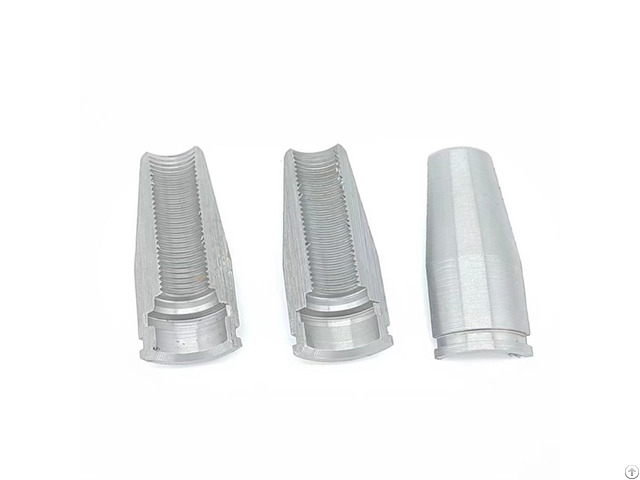

The RuiYi post-tensioning wedge is a crucial component used in prestressed concrete structures.

By applying prestressing force on the concrete elements, it significantly enhances the load-bearing capacity and durability of the structure.

Working Principle of post tensioning wedge

By utilizing the taper of the anchor ring and the prestressed anchor plate, a significant clamping force is generated on the steel strand, creating a strong gripping force.

The clamping-type anchor system generally utilizes the frictional resistance between the prestressed anchor plate and the steel strand to secure the steel strand.

The porous prestressed anchor plate system, also known as a cluster anchor system, consists of porous prestressed anchor plates, anchor bearing plates (also known as cast iron bellows, anchor seats), helical bars, or steel mesh sheets.

This type of anchor is implemented on a multi-porous anchor plate, with each conical hole holding a pair of prestressed anchor plates to clamp a steel strand.

General Parameters of Post Tensioning Wedge

Product Code Dimensions

(D mm*L mm) No.

of

Segments(PCS) Material&Hardness Weight(g) Qty(Sets) /Box Compatible PC Strand(Dia)

RYM04 16*27 2 Material: 20CrMnTi

Hardness: HRC 58-62 25 500 3.9mm

RYM013 23.7*35.8 2&3 62 200 12.7mm

RYM015 25.5*42.4 2&3 82 150 15.2mm

RYM018 30*47 2&3 120 75 17.8mm

RYM022 36.4*59 2&3 200 75 21.6mm
