Yd1510 Ra Uv Flatbed Printer Led Digital Inkjet Mental Sheet Printing - China

Product Description

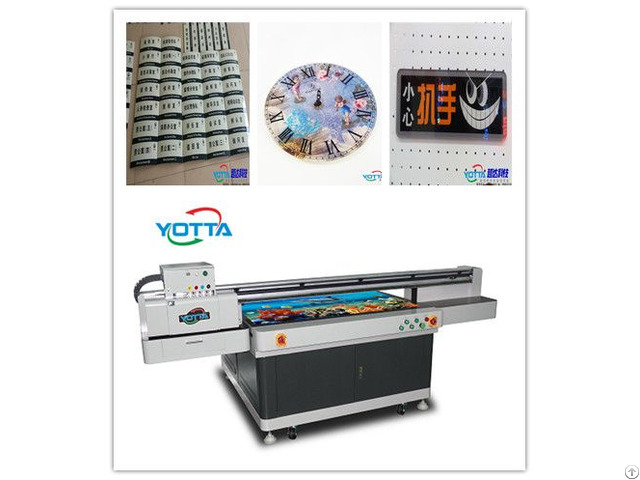

YD1510-RA UV flatbed printer adopts the original imported Ricoh Gen4 industrial printhead, our machine quality is a leader in this field, the print size is 1500*1000mm, moreover, it can print all kinds of flat items, including wood, glass, metal sheet, slate, paper, acrylic, fabric, building materials and so on.

YD1510-RA UV flatbed printer has a clear printing effect and can achieve the expansion and upgrading of different configurations according to the needs of users, improving the cost of the machine.

Applicational field

Advertising industry：pvc board, KT board, metal sheet, signboard, advertising sticker and so on.

Decoration：handicraf ts, Jade, clothing, decorative Painting, carving printing, personalized furnishing and so on.

Model YD1510-RA

Print head Ricoh Gen4 grey scale piezo print head

Head quantity 3-8 pieces

Print resolution 600*1200dpi

Print mode unidirectional and bidirectional

Print Speed 4 Pass 6 Pass 8 Pass

23 ㎡/h 15 ㎡/h 11 ㎡/h

Print Size 1.5m × 1.0 m

Material type Rigid and flexible material

Material thickness Up to 100mm

Suitable materials Glass, acrylic, wood, ceramic, metal, PVC, corrugated board, plastic etc.

Ink Type Environmental UV curing ink (Non VOC)

Ink Color C, M, Y, K, Lc, Lm (optional)

Special Ink UV white ink or UV varnish

Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI

Software Interface Windows, Seeget, Onyx

Printer weight 680KG

Printer dimensions 120cm(H) ×165cm(W) ×300cm(L)

Power consumption 2.4 KW

Power requirement 220V/AC (±10%), 50 / 60 Hz

Working environment Separate, little sunlight, ventilated workshop.

Temperature: 18º C～

30ºC(64º F～ 86ºF ) Humidity: 30% ～ 70% (Non-condensing) Ventilation equipment: Suggest Overhead exhaust fan, displacement 600 cfm

1 - About the price and quality?

We can not say we are the best supplier, but we are honesty for our quality and price.

Good quality is our first rule, and good service is our mission.

We produce machines as 5S management rules, and ISO standard.

2 - Why do you choose our factory?

We produce flatbed printing machine, digital flatbed printer is a new product in printing industry, it can

print on the surface for various kinds of flat objects directly, such as crystal, leather, glass, metal, ceramic

tile, PVC, PP, PE and so on.

Any pictures can be printed on the surface of the subjects by the printer with

high resolution, it is the fastest flatbed printer on the current market.

And we will keep you with a best

service, give us a chance, also give your a chance to know this field if you really want to know this printer.

3 - What is the printer operation?

a.

Through a digital camera or scanner to get File sources of pictures.

b.

Through the computer images to typesetting modified document layout.

c.

Through the universal printer output files to print.

d.

Print objects requirements.

Company Contact:

• Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.

• Phone: 13925227012

• Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China

• Email:

• Website: http://www.yo-da.com

• Business Description: Yueda specializes in manufacturing UV flatbed printer for over 8 years.

  Our printing machine can print any picture on any flat materials with embossment and 3D effect.
