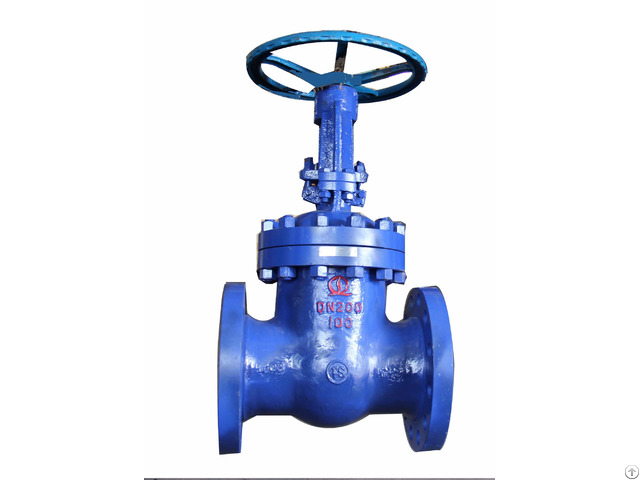

Wedge Gate Valve For Boiler Feedwater And Steam - China

Wedge gate valve for boiler feedwater and steam is a kind of wedge disc valve, they are widely used in boiler feedwater and steam system in power plant .

The valve are desinged for higher temperature and pressure .

HS CODE ： 8481804090 BENEFITS 1 - Manufactured with straight-through channel, the energy loss is less than that of the S type channel, the flow direction of the medium is not changed when passing through the gate valve.

2 - The wedge structure of the valve plate makes for large loading coefficient of the sealing.

Safe and reliable, so this wedge gate valve can be used under high pressure.

3 - The high precision of the valve stem realizes the tight integration with stuffing .

So, medium leakage can be avoided.

4 - Anti-high temperature material are adopted in this gate valve .

SPECIFICATION Design and manufacturing standard: GB/T 12234-2007 Face to face dimension standard: GB/T 12221-2005 Flange connection standard: JB/T 79-2015 Test Standard : GB/T 13927-2008 Size: DN50~DN400

Pressure: PN16~PN100

Body material: WC6, WC9

Sealing material: Hard alloy

Connection type: Flange

Driving method: Manual, electric APPLICATION Power industry Chemical industry

Water Works
