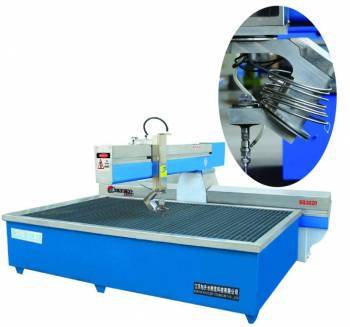

Water Jet Cutting Machine For Multi Function - China
price: contact company for price
Pressurize tap water into high pressure water, use nozzle and orifice
to beam the high pressure thus can cut different material into the
shape you want.
Of course it needs CNC cabinet.
This machine can cut all kinds of different meterial into the shape you want.
Cutting material can be marble, glass, aluminium, brass, copper, plastic, rubber, military arms and so on.
The advantage is to cutting without heat affected zone.
Also can cut thickness from 1mm to 200mm.
Sunrise waterjet cutting machine is extensive used in architectural ceramics, stone tech, glass, metal working, rubber industry, auto industry, aerospace industry, military industry, petrochemical industry and all kinds of special processing industry with its’ superior performance to price ratio.
Our products already sell to more than thirty foreign counties.
So far more than 2000 sets of our products are used all over the world.
Cutting area: 1.3m×1.3m×0.15m to 6.0m×3.0m×0.15m
Form of machine: Cantilever/ Gantry style
Running speed: 0- 10m/ min
Control system: servo motor( YASKAWA Japan) , Washing control system
Control accuracy: ±0.02mm
Cutting accuracy: ±0.1mm
Max pressure: 400Mpa( 60000psi)
Flow rate of UHP water: 3.8L/ min
Power of oil pump: 30KW/ 37KW
Power supply: 380V/ 50Hz
Company Contact:
- Posted By: JiangsuSunriseWaterjetTec hnologyCo.,Ltd.
- Phone: 8613327971539
- Address: No.18NorthFeiyaoRoad , Huai'an , China
- Email:
- Website: http://www.xshcn.com
Published date: August 1, 2014
- Business Description: Our company located in Jiangsu Province, which has only 50 minutes flight
from Shanghai to our plant.
We have 20000 squre meters plant intergrated
with researching, developing and producing.
We have specialized in
waterjet cutting machine for more than 12 years and have customers from
all over the world such as
UK, Poland, Iran, Russia, Qatar, UAE, Australia, China and so on.
The machine
includes five regualr parts, CNC arm, working table, CNC cabinet, ultra high
pressure system, abrasive delivery system.
With high quality, competitive
price and excellent after sale service, we will help customers lower
manfacturing cost and expand their market on mutal benefit.
