Vertical Automatic Shell Core Shooting Machine - China

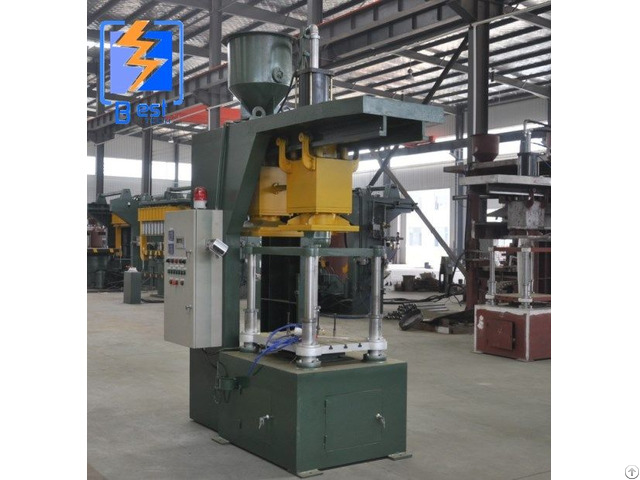

vertical parting hot box sand core machine is composed of bedparts, mould parts, sand parts and beam parts, pneumatic parts and controlparts.

AT94R series vertical parting hot box sand core adopts four posts frametype structure, two guide shaft structure on both sides of moving mould plateswith enough rigidity and strength, stable operation, high precision to ensure the stability of the various parts work.

1 - The bed parts include column, which is the main part to support beam.

2 - Column components: composed of column, beam, sand supply system, 3 - compaction device, guide rail, gas storage package, etc.

The sand and gas supply system that makes up the core process; 4 - The shooting device consists of ejection plate, shooting head, sand tank, box, roller, bracket and other parts.

Complete the process of shooting sand, making sand core and other processes; 5 - Mold frame parts are composed of template bracket, joint mode cylinder, sand core push-out core device, guide column, guide sleeve, etc.

It is the key component that embodies the core quality and completes the core work.

6 - Base parts: the base is equipped with a pneumatic system solenoid valve, and the electric control box is installed in front of the base to realize various functions.

7 - Machine base and beam are welded with steel plate with sufficient strength and rigidity.

The fuselage of the machine is treated by destressing with reliable stability.
