Venzo 820 Vibration Controller - China

VENZO 820 Shaker Control System

State- of- the- art Hardware

1~2 Analog input channels

1 Drive Channel

450MHz DSP Processing

100 Mbps Ethernet port connecting to PC ( without grounding problem)

- 30~70℃ Working Temperature

No- fans structure to reduce the background noise

160 dB / Octave Anti- aliasing Filter

1 AUX Channel

24- bit ADC/ DAC, 130dB dynamic range

204.8 kHz Sampling Rate, 40kHz Frequency Range

1GB Internal Flash Memory Stores Test Configuration

Floating Ground Design Reduces Ground Loop Problems

Classical Control Functions

Sine

Random

Resonance Search and Tracked Dwell

Classical Shock

Analysis Capabilities and Auxiliary Functions

THD Detection

Data Recorder

FFT Analysis

SRS Analysis

FRF

Waterfall View

Signal Calculation

Signal Cache

Signal Editor

Word/ PDF Test Report

Email Report

Off- line view

Transient Capture, Force/ Deflection Analysis, Shock Response Analysis

Hardware Specifications

Input: 1~2 channels

Input Interface: BNC Connector

Input Resolution: 24- bit ADC

Coupling: AC Gnd, AC Dif, DC Gnd, DC Dif, Charge, IEPE

TEDS: IEEE 1451.4 compliant, automatic- reading

Anti- aliasing Filter: analog and digital anti- aliasing low- pass filters

Input Dynamic Range: 135dB

SNR: > 100dB

Input Voltage: Ranges ±10, ±1 or ±0.1 VPEAK

Input Impedance: 1MΩ （ Single- ended） 2MΩ （ differential）

Maximum Input: ± 36VPEAK without damage

Input Channel Crosstalk: <- 100dB@ 1kHz

Amplitude Channel Match: 0.1 dB

Channel Phase Match: better than ±1.0 degree, up to 20 kHz

Input Signal Type: Charge, Voltage, High- integrated

Input / Output Channel Crosstalk: <- 100dB

Total Harmonic Distortion: <- 100dB

Frequency Accurancy: as fine as 0.000001Hz

Output: 1 Drive Channel

1 AUX Channel: can be configured as drive channel in dual- axis control

Output Interface: BNC Connector

Output Resolution: 24- bit DAC

Max.

Sampling Rate: 204.8kHz

Frequency Range: 80kHz

Dynamic Range: ≥ 108dB

Output Voltage Range: 10V F.

S

Max Output Current: 20 mA

Total Harmonic Distortion: <- 100dB@ 1kHz

PC Configuration: Windows XP/ Vista/ 7 / 8 Operating System and an Ethernet port.

Microsoft Word / Excel and PDF are recommended.

Main Classis

Dimension ( mm) : 290* 210* 60 ( VENZO 820) ; 390* 280* 60 ( VENZO 880) ; 430* 280* 60 ( VENZO 8160)

Weight: 2.6 kg ( VENZO 820) , 4.2 kg ( VENZO 880) , 5.0 kg ( VENZO 8160)

Front- end Panel: three LED lights indicate the status of " Power" , " Ready" and " Control" .

The red Abort button is for emergency stop of the vibration test system.

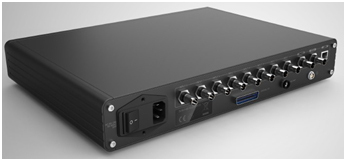

Rear Panel: connectors include 2/ 8 Analog Input Channels, a Drive Channel, a100 BASE- T Network Port, an AUX channel ( only for VENZO 880, can be adjusted to 2- axis drive control channel) , a grounding- end, an External Emergency Abort Jack and a terminal block of digital I/ O lines.

Working Temperature: - 30~70℃

Humidity: 5% ~95% RH

Consumption: 10W ( VENZO 820) , 20W ( VENZO 880)

Power: 100～ 240VAC（ 50～ 60Hz）

Enclosure Rating: IP43

PC Connection: high- speed standard Ethernet interface

Anti- vibration Performance: 10- 60 Hz @ 0.15 mm peak； 60- 150 Hz @ 2 gn, conform to IEC 60068- 2- 6;

Anti- impact Performance: 10 gn for 16 ms， conform to IEC 60068- 2- 27

In Accordance with EMC Standards: EN61326- 1: 2006, EN61000- 3- 2: 2006+A1: 2009+A2: 2009, EN 61000- 3- 3: 2008

Safty: EN 61010- 1: 2001

Compliance: CE Marking

Company Contact:

• Posted By: DynaTronic Corporation Ltd

• Phone: 008657188194486

• Address: China , Hangzhou , China

• Email:

• Website: http://www.dtc-solutions.com

• Business Description: DynaTronic Corporation was formed by an innovative and professional

  team, who are dedicating to vibration test and measurement fields

  DynaTronic Corporation provides leading edge instrumentation for vibration testing and measurement, e.g., VENZO 800 vibration controller can provide you with the most comprehensive vibration control software modules, including: random, sine, classical shock, RSTD, SRS, SoR, SoS, RoR, SRoR, TTH and FDR and other auxiliary applications.

  Each module provides basic functions and optional functions, so you can customize the desired system.

  The grateful and characteristics which contain simple operation, rich control function, improved analysis and reporting features, easy to upgrade hardware and software, and high reliability and quality contributes the high cost effective for VENZO 800 series vibration controller.
