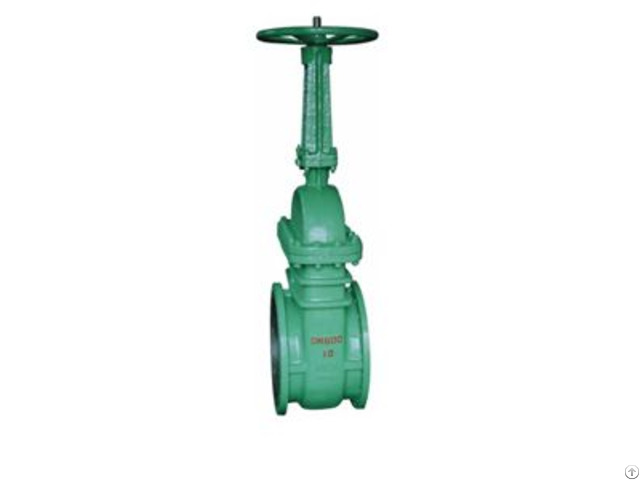

Vacuum Isolated Gate Valve Of Power Plant Valves - China

Product overview

Chief structure features and usages

1 - The main body of this series valve uses a casting and forging structure and has a dual-direction seal of parallel secondary semi-forced dual-sealing and the motions of both the sealing face to its due position and the tapered block to wedge-up are separated to have zero lead age come true.

2 - The sealing face is of a small frictional force if motion, lightly opened and closed and has a self compensation function for wearing.

3 - Simple structure easy to more than 10 years of long duration.

4 - A vacuum sealing structure is set in the filling chamber on the valve cover, which has the action of self-expanding and impacting, the joint faces are sealing with the expansive material of high strength to completely isolate the system from air.

5 - Two connection ways of b flange and welding, two ways to drive of heand-and eletric-operation.

The valve can be used as the open & close device for the pipelines under the working temperature Less than425degree centigrade and 550 degree centigrade and the working medium of water, steam or air;especially suitable to act as the vacuum isolating sealing for the system of steam turbine's considernation and vacuum negative pressure in steam power plants.

Valve ctrucure type:

Mode1 NKJ61 Vacuum isolating stop valve;Model NKZ44 and NKZ64 Vacuum isolating gate valves.

Manufacture and acceptance standard:

1 - Manufacture, acceptance and technical conditions per GB/T12234, GB/T12235.

2 - Face-to face dimensions per GB/T12221.

3 - Flange sizes per JB/T78-79, GB/T9112-9124.

Material for main parts

Body, Bonnet: 25 or WCB

Valve stem：Cr.

stainless steel, 25Cr2MoV

Disc：Cr.

stainless steel, 12Cr1MoVA。

Sealing face：H: alloy steel, Y: carbide alloy

Yoke nut：Al bronze

Packing：Expanding compound graphite

Fastener：High-grade carbon steel, Cr.

Mo steel
