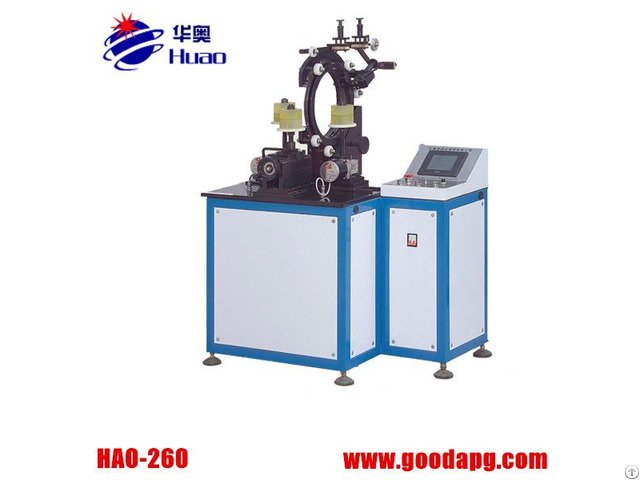

Transformer Coil Winding Equipment - China
price: 7000.00 Dollar US$
Description:
Transformer coil winding machine for voltage transformer is the special device designed according to the technology requirements of domestic enclosed voltage transformer secondary coil.
Transformer coil winding machine is the effective attempt for realizing the numerical control, mechanization and speciality of secondary coils of enclosed voltage transformer.
Technical Parameters:
Product Name CNC winding machine
Model HAO-480
Diameter of windable electromagnetic wire Φ0.5-2.6mm
Max transverse motion distance of working bench 400mm
Max longitudinal motion distance of working bench 200mm
Max outer diameter of winded secondary coils 120mm
Max winding rotation speed 100rpm
Max power of winding motor 1.5KW
Max outline size of machine tool 700*1100*1350mm
Steps of Quality Control:
1 - Strictly control the purchase standard of raw materials.
2 - With high precision equipments and rich experience workers to process components, make each process up to standard.
3 - Assembly process, recheck the quality of the components, the machine appearance etc.
4 - Transformer coil winding machine Before shipment, test all operating procedures by winding the core to ensure the machine work normally.
Company Contact:
- Posted By: Huaao Electeonic Technology Co.Ltd
- Phone: 13362028128
- Address: NO.6-3 ruzhu road,fuzhu pack,, sidu town,Jiangshan,quzhou, zhejiang, china, jiangshan , China
- Email:
Published date: June 17, 2019
- Business Description: The only supplier for apg machine, molds and techinique training overseas
technique consult service, mixing plant, raw material, molds, winding machine, sample production
