Th Bucket Elevator - China

A mechanical machine consisting of a series of buckets attached to ring chains as its traction component and used to haul materials vertically.

Able to carry materials with bulk density less than 1.5 t/m³.

Elevating distance up to 40 m.

Able to handle materials of temperature not more than 250°C.

Uses two types of conveying bucket which are Zd type (mid-depth bucket) for wet, cakey materials, and Sd type (deep bucket) for dry, loose materials.

Working Principle

A series of buckets attached to ring chains with sprockets located at the top and bottom.

The bucket is filled up with material and conveyed to the head terminal.

Under the centrifugal force of the parabolic design, the materials will be thrown from the bucket into the discharge chute.

Driving device drives the sprocket to operate the motion of conveying buckets in circular.

After discharging materials into the discharge chute, empty buckets driven back to the bottom and repeat the process.

Features and Advantages

 Stable and reliable operation.

 High conveying speed with smooth transmission.

 Securely sealed body, therefore low noise pollution.

 Low maintenance and spare parts cost.

 Long operation span.

 Rigid design to ensure machine efficiency.

Applications

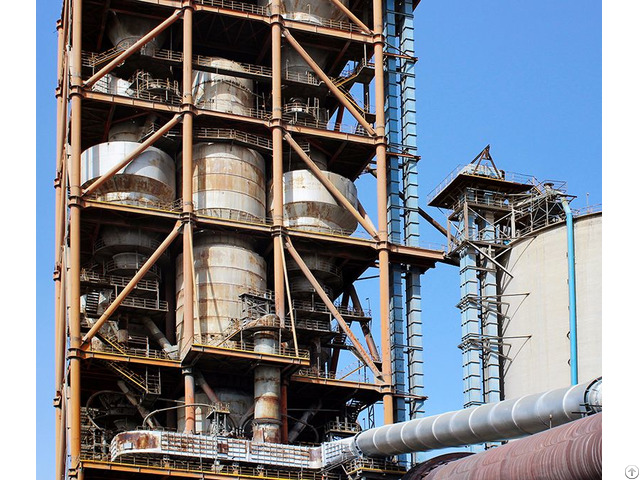

Widely used in mining, metallurgy, chemicals, power plant, agriculture, quarry industries etc.

to transfer materials in the form of powder, granular, grinded and non-grinded small block.
