Submersible Slurry Pump - China

Submersible Slurry Pump

Solid Control Equipment

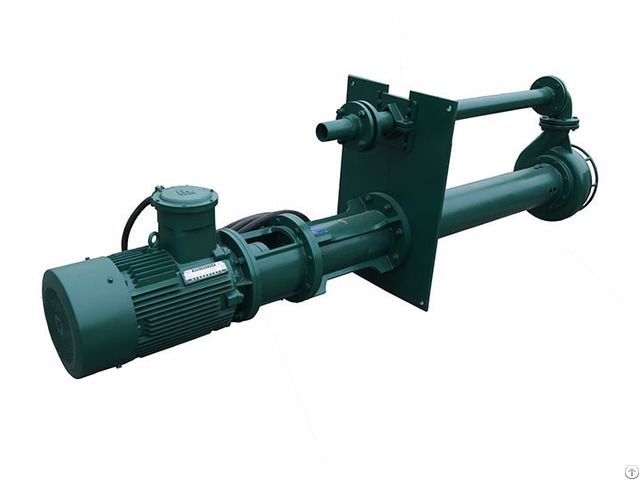

Submersible Slurry Pump for Heavy Oil

Submersible slurry pump is used in oil drilling solids control system, pumping concentrated liquid, heavy oil, oil impurities, dirty fluid, mud and silt containing slag material and corrosive liquids.

Submersible slurry pumps produced by DC have the advantages of high efficiency, maintenance free.

heat-resistant, long service life, etc.

(1) Geometry of flow components conform to the flow regime of medium, reducing hydraulic losses caused by eddy and impact of local and on-way.

(2) Adopt power step-down to ensure no leakage of the slurry.

(3) Pump flow components adopt high hard alloy casting, the material have the advantages of high wear resistance, corrosion resistance, impact resistance and long service life.

Submersible Slurry Pump Parameters

Model Flow Lift(m) Speed(rpm) Efficiency (%) Power(kW) Dimension(mm) Weight (Kg) m3/h L/S DC50YZ20-18A 10 2.8 10 1430 42 2.2 2710×500×720 364

DC50YZ20-18 20 5.6 18 1430 42 3 2710×500×720 366

DC50YZ20-18 30 8.4 10 1430 47 4 2730×500×720 388

DC50YZ40-10 40 11.2 10 1440 56 5.5 2750×500×720 400

DC50YZ50-20 50 13.8 20 1440 56 7.5 2810×500×720 583

DC80YZ80-20A 80 22.2 21 1460 55 11 2650×500×720 610

DC80YZ80-20 90 25 15.6 1460 51 11 2750×500×720 720

DC100YZ100-30A 110 30.6 24 1470 54 18.5 2790×600×900 840

DC100YZ100-30 120 33.3 28 1470 56 22 2810×600×900 880

DC100YZ160-38 160 44.4 39 1480 52 45 2920×600×900 1300

DC150YZ250-40B 200 55.6 25 1480 49 37 3160×700×1130 1400

DC150YZ250-40A 240 66.7 31 1480 50 45 3190×700×1130 1500

Remark 1 - submersible length of the pump is 1500mm or customized.

2 - The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3.

3 - Certificate: Ex dⅡ BT4.
