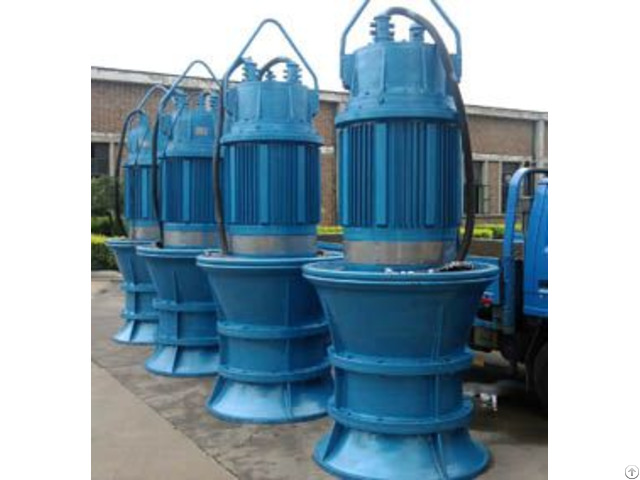

Submersible Propeller Pump - China

Appropriate for pumping clear water or lightly contaminated water.

Used to flood to flood control and drainage farmland irrigation, water supply projects, etc.

Power: 22 to 500 KW

Discharge: 500 to 20000 m3/h

Head: 1.5 to 15 m (3.6- 54 feet)

Pump Outlet Diameter: 350 to 1400mm (13.7 to 55.1 inch)

Dia.

Of Impeller: 267 to 1540mm (10.5 to 60.6 inch)

Rotate Speed: 485 to 1450 r/min

Angle of Impeller Installation: from -6 deg.

to +6 deg.

Ph Value: 6, 9

Operating limits:

Maximum ambient temperature 50 deg.

C

Motor:

1 - Rewindable, dry-type, whole sealing and three-phase asynchronous motor

2 - Insulation Grade: F

3 - Protection Grade: IP68

4 - Double/Triple mechanical sealing

5 - Equipped with special control cabinet

6 - Voltage: 380-10000V

7 - Frequency: 50; 60Hz

Materials:

1 - Pump body: cast iron

2 - Impeller: stainless steel

3 - Shaft with rotor: 45 steel

Company Contact:

• Posted By: Tianjin GanQuan Group Corporation

• Phone: 00862223660133

• Address: San He Industrial Zone, Ge Gu County South, Jin Na, Tianjin , China

• Email:

• Website: http://www.ganquan.com.cn

• Business Description: Tianjin Gan Quan (submersible pump) Group Corporation is an important

  base of manufacturing water industry products.

  It is have more than 30

  years history for submersible borehole pump (deep well water pump) ,

  submersible heat resistant pump for geothermal well, submersible sewage

  pump, Axial flow pump, submersible self priming ( downdraught) pumps,

  automatic constant pressure variable water supply control equipment,

  various cables and wires, FRP Load Heat Preservation Piping, etc.

  The

  products are sold both in countrywide range and exported to Middle East,

  Southeast Asia, Europe, etc, with the sales turnover is $30 million per

  year, and we have 700 people in our company.

  Our company has been

  awarded the outstanding enterprise by Chinese Farming Machine Industry

  Irrigation and Drainage Machine Submersible Pump Industry Institute, and

  gloriously obtained the prize of Scientific and Technological Star of

  Invention and Innovation of United Nations.

  We have get international

  quality authentication, we also can do third country authentication.
