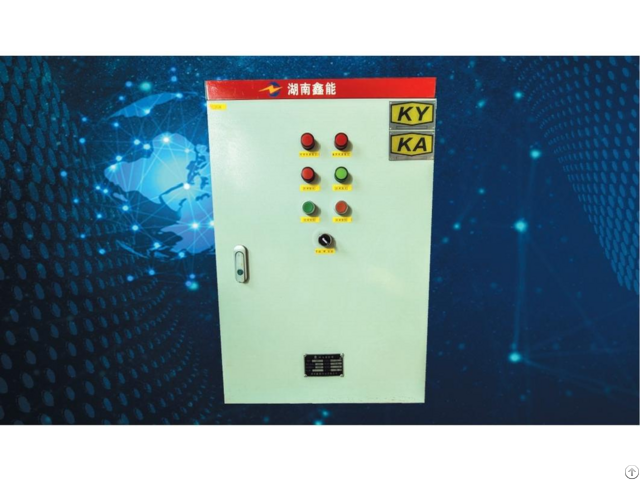

Start Up Cabinets For Mine Use - China

Product introduction

This series of starting cabinet products are suitable for AC 50HZ (or 60HZ), the voltage is 38OV or 66OV, the power is 11-300KW three-phase squirrel cage motor, water pump, etc., as a step down start, and can accelerate the motor to the rated speed and stop the motor.

It can protect the motor from overload, phase break and short circuit.

Overload protection of starting aging is provided for the autotransformer.

Products meet the standard: GB14048.4; Rated insulation voltage: AC380V; Rated impulse withstand voltage: 6V, rated working voltage: AC380V; Use category AC-3; Rated control power supply voltage: AC380V50HZ: Insulation class of transformer: Class B.

And because the current relation of the primary side of the transformer I1=I2/K, it can be seen that the current of the primary side (that is, the starting current of the power supply motor) is smaller than that flowing directly through the fixed subwinding of the motor, that is, the starting current of the power supply motor is 1/K2 times of the direct starting.

Since the voltage is reduced to 1/K times, the torque of the motor is also reduced to 1/K2 times.

The secondary side of the auto transformer has 2 to 3 groups of taps, such as the secondary voltage is 80% and 60% of the original side voltage.

Company Contact:

• Posted By: Hunan Xinneng Industrial Co.,Ltd.

• Phone: 18175753613

• Address: changchong industrial park, Chenzhou , Hunan province, China

• Email:

• Business Description: manufacturer of substation,distribution box and other electrical equipments in China

  Hunan Xinneng Industrial Co.,Ltd.is a national high-tech enterprise and a provincial-level "specialized,refined,and innovative"small giant enterprise;We are one of the professional manufacturer of high and low voltage switch transmission

  and distribution equipment,as well as low-voltage electrical components.

  Our company's products include box type substations, inflatable cabinets,American style box transformers,cable branch boxes,outdoor switching

  stations,photov oltaic equipment,electrical components,and intelligent operation and

  maintenance energy management systems.

  Our quality is stable,the price is reasonable,and we are highly praised by customers!
