Split Volute Casing Water Pump - China

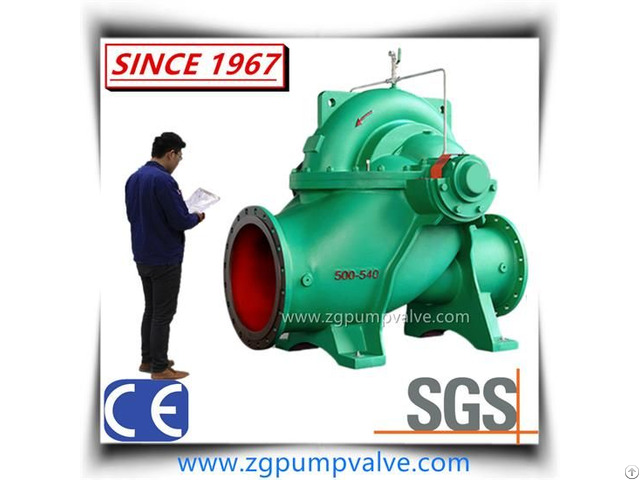

Split Volute Casing Water Pump

Brief Introduction:

ZSS series axial split casing pump is a updated product which absorbed the advantages of same type pumps.

It is a replacing product of old S series and SH series double suction pump.

This updated product owns the features of better hydraulic performance, high efficiency, stable operation, smaller in size.

Parameters:

Flow rate: Q=50~6330m3/h

Total head: H=9~160m

Speed: n=980 rpm/2950rpm

S.

g: γ ≤1.15 Temperature: T=-0~105ºC

P ump diameter: 80~600mm

Features:

1 - Excellent energy-saving hydraulic models.

2 - Optimized hydraulic design, precisely casted impeller+casing+pump over and dynamic balanced impeller ensure the accurate performance of pump.

3 - Instead of traditional external circulation structure, a revolutionary design of sealing cooling and lubrication is adopted, which enables the complete internal circulation of cooling, lubrication and flushing.

4 - Internal sealing lubrication structure, the flushing to sealing system is more efficient.

5 - Straight line outline with stiffeners on pump cover, internal sealing lubrication structure, flexible structure design makes the pump more elegant.

Structure:

1 - Single stage, double suction, axial split casing centrifugal pump.

Double passage casing to reduce the axial forces.

2 - Both pump inlet and outlet are beneath the pump centerline, the rotary part can be removed from the casing without dismantle the pipelines.

3 - Shortened shaft and enlarged diameter of shaft design to increase the life of bearings and mechanical seals.

4 - Completely sealed shaft design, zero contact with fluids.

5 - Various materials of shaft sleeve to prevent the shaft from abrasion and corrosion.

6 - Both mechanical seal and packing seal are available;mechanical seal can be changed without dismantle the pump cover.

7 - Different rotation directions are available.

Application:

1 - It is suitable to pump clean water and fluids have close physical and chemical characters of water.

2 - Widely used in sections of mining, city water supply, power plant water supply and drainage, farm irrigation and various water conservancy project.
