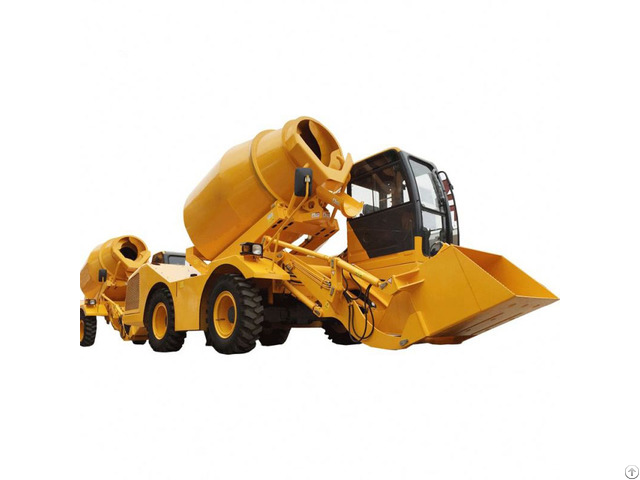

Small FM1.7 Cconcrete Mixer Truck

Introduction of Small FM1.7 Cconcrete Mixer Truck

In order to meet this requirement, we have developed a new product--Small FM1.7 Cconcrete Mixer Truck to adapt to small-scale construction of small concrete dump truck.

The characteristics of this model are: low chassis, low center of gravity; small horsepower, small amount of volume; since loading and unloading, since the mixing, walking.

The advantages of this mixer truck is flexible, site adaptability, without the need for mixing stations, mixing their own mixing.

It is also known as a person's mobile mixing station, especially for: the site is narrow, limited height, manpower, electricity, water to scarce areas, such as: the current construction of new rural towns, high-speed rail, high-speed, power, water, bridges, And other construction needs, the Company to: high-quality, cheap, perfect service business philosophy, and new and old customers and common development.

Parameter of Small FM1.7 Cconcrete Mixer Truck

Mixing System Drum capacity 1.7 m3, height of 1.5 meters discharge .

Production capacity Concrete output: 1.2 m3/ cans, 4.8 m3 / h

Engine Wuxisida brand with 490 boost, 48KW Yunnei brand with 490 boost, 48KW(optional)

Transmission Torque converter, 4-wheel drive, two steering, Chinese Axle

Walking speed Low speed 2 km / h high-speed 20 km / h

Cab Left-hand drive, anti-tilt, FOPS cab, front loading shovel

Hydraulic system Domestic hydraulic systems, open loop for hydraulic transmission and drum rotation

Operating lever Electronically controlled four-speed joystick

Bucket 270 liters, hydraulic valve

Chute Hydraulic adjustable angle, in order to increase the discharge length

Water supply system Hydraulically driven self-priming pump, washing with high pressure water pump vehicle, electronically controlled self-priming pump, take 100 kg water per minute

Brakes Air brake brakes, dual independent circuits

Tire 12-16.5 construction machinery tires

Power Systems 24V

Tank Fuel tank: 35 liters, hydraulic tank: 120 l

Weight 3200kg

Dimensions Length: 5 m Width: 1.9 m Height: 2.6 m

Measure Electronic weighing, measuring water control, recipe controlled
