Small Cnc Router For Sign Making - China
price: 3900.00 Dollar US$

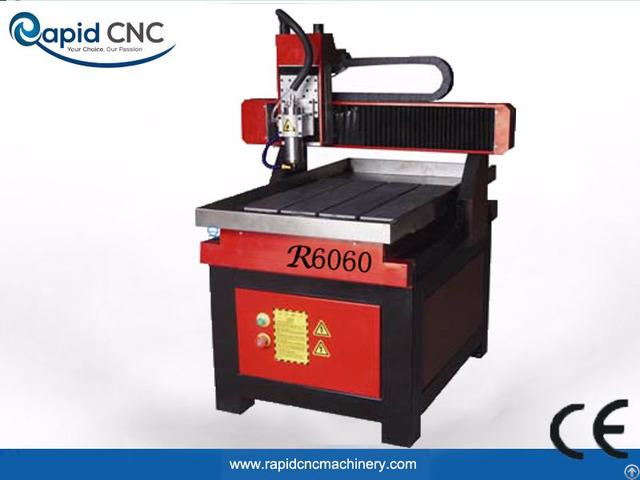

Table moving cnc router for sign making R6060 Features:
1 - Whole steel welded structure, 2 - Three axes Taiwan TBI square orbits, ball screw, 3 - DSP control system / MACH 3 control system, and Artcam software, 4 - 800-1500w water cooled spindle, air cooling spindle as optional
5 - T slot aluminum alloy table, (options: Rotary clamp diameter 80mm (x150x100mm) 6 - End milling cutters and sharp cutters totally 5pcs, clamps
Applications:
1 - Advertising industry: cutting/engraving/drillin g/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2 - Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments, etc
3 - Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC etc;
4 - Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc
small cnc routers .
jpg
router cnc .
jpg Technical parameters: No Description Parameter
1
Travel (X/Y/Z)
600X600X150mm
2
Work piece height
less or equal 150mm
3
Table type
T slot aluminum alloy table
4
Machine Structure
Whole steel welded
5
Table Surface
Rubber
6
Motor
Stepper
7
Transmission
Special purpose made lead screw
8
Spindle motor
1500W water cooled spindle
9
speed
300-10000 RPM/min
10
Precision
0.05mm
11
Repeat positioning precision
<0.05mm
12
Max travel speed
12000mm/min
13
Engraving speed
100-8000mm/min
14
Step driver
three axis independent driver
15
Driver power supply
24V/6 A
16
Engraving code
G-code /U00/mmg/plt
17
Software environment
window98/2000/XP
18
voltage
AC220/50HZ
19
Machine weight
160kgs
20
Machine dimension
1040*1150*1080mm
Main accessories included:
1) T slot clamps (fixing the working material) 2) Allen keys for spindle adjusting (and machine cover fixing etc)
3) two box cutting tools (3.175, 4, 6, as gift )
4) 1*USB Cable (connecting DSP and machine)
5) 1*CD or electronic documents (including software, user manual, guiding videos etc)
6) 1*Power cables
7) 1*Tool box (for routine maintenance)
Machine delivery time: 10 working days.
Payment terms:
1 - 30% deposit T/T in advance, 70% before delivery from factory.
2 - L/C at sight.
3 - West union.
4 - Paypal etc.
Guarantee & After Sales Service
1).
Whole machine is guaranteed for 12 months.
2).
Technical support available 24 hours no matter through phone, email or whatsapp
Company Contact:
- Posted By: Jinan RapidCNC machinery Co.,ltd
- Phone: 008618615288840
- Address: No.168-1, Huashan Industrial Area,, Jinan City (济南市), Shandong , China
- Email:
- Website: https://www.rapidcncmachine.com
Published date: December 20, 2017
- Business Description: Manufacturer of cnc router machine , cnc laser cutting machine , plasma cutting machine , cnc drilling and milling machine , cutting plotter etc .
