Slant Bed Lathe With Programmable Blowing - China

slant bed lathe with programmable blowing

OEM slant bed lathe, cnc lathe with Slant Bed price

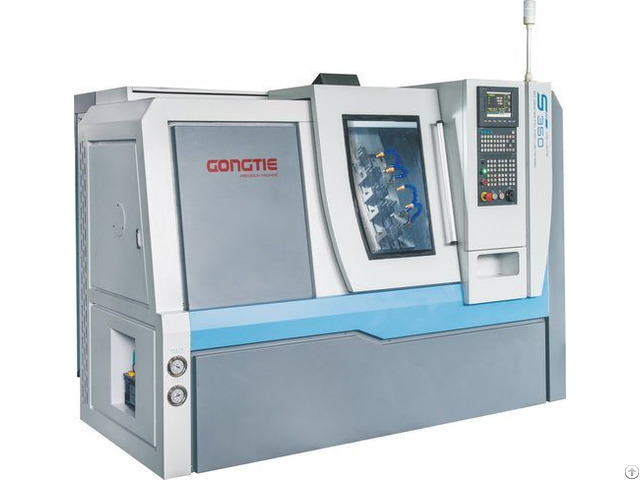

S series-precise linear guide-way with flat bed in blade row : S36, S350

with the features of high precision.

high speed.

high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.

* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.

* High speed: more than 5000RPM for spindle, rapid traverse 20m/s, to reach the high speed machining.

*High-efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.

* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.

Synchronous electric spindle-- the best selection for substituting the imported lathes.

* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.

* Higher speed: the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.

* More efficiency: the complete, Synchronous control for the core parts (all the axis), makes the processing efficiency better.

Main parameters UNIT S36 S350 S36C S350C

Capability Max.

swing diameter mm 460/120 460/120 460/120 460/120 Max.

turning length mm 325/270 270 325/270 270 Max.

bar through-hole mm 25(35) 40(45) 25(35) 40(45)

Axis Stroke X-axis travel mm 420 420 420 420 Z-axis travel mm 345 345 345 345

Rapid Traverse X/Z-axis m/min 20 20 20 20

Spindle Spindle nose size N/A A2-5 A2-5 A2-5 A2-5 Spindle hole through diameter mm 48 52(56) 48 52(56) Spindle servo motor power kW (asynchronous) 5.5/7.5 (asynchronous)7.5/9.5 synchronous electric spindle synchronous electric spindle Spindle speed range rpm 0～5000 0～4500 0～6000 0～5000 Work piece clamping method N/A homemade collet 6"/8" hydraulic chuck homemade collet 6"/8" hydraulic chuck

Toolholder Number of tools PCS 5 5 5 5 Toolholder type N/A T-slot blade row T-slot blade row T-slot blade row T-slot blade row OPT T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool OPT T-slot blade row+63 turret T-slot blade row+63 turret T-slot blade row+63 turret T-slot blade row+63 turret OPT T-slot blade row+63turret+live tool T-slot blade row+63turret+live tool T-slot blade row+63turret+live tool T-slot blade row+63turret+live tool Toolholder center height in radial mm 62 62 62 62 Tool size mm 20*20 20*20(25*25) 20*20 20*20(25*25) Boring rod diameter mm 25 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002

Others Cooling motor capacity L 120 120 120 120 hydraulic box capacity L 60 60 60 60 Required electric power kVA 12 14 12 14 Height from floor to spindle center mm ≈1070 ≈1070 ≈1070 ≈1070 Overall size(L*W*H) mm 1850*1750*1750 1850*1750*1750 1850*1750*1750 1850*1750*1750 Net weight kg ≈2400 ≈2400 ≈2400 ≈2400

Standard tool box, instruction, manual, cooling system, lighting system, lubricating system.

hydraulic chuck.

Optional foot switch, programmable blowing function, precision C-axial division, living tool, auto door, loading & unloading system, industrial robot, auto bar feeder, parts catching device, chip conveyor, auto detecting system, auto tool compensation system, high pressure cooling system
