Safety Glass Quality Testing Equipment - China

Impact Testing Equipment

Testing Machine for Mechanical Properties of Tempered Glass Shot Bag

1) Weight: 45kg±0.1kg 46kg±0.1kg

2) Height: 330mm ± 13mm

3) Max diameter: 250mm

4) Lead sand size: 2.5mm

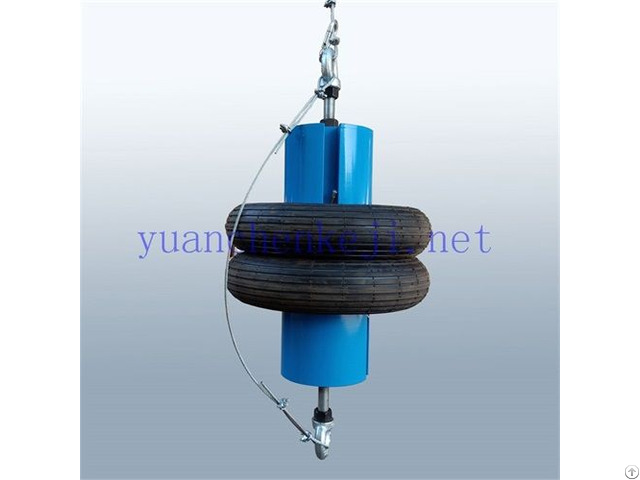

Pneumatic Tyres Impactor

Pneumatic Tyres Device for Pendulum Test of Glass In Building According to BS EN 12600

Reference standard:

BS EN 12600: 2002

Glass in building - Pendulum test - Impact test method and classification for flat glass

MS 1498: 2017

Safety glass in building - Specification

Technical Parameters:

Weight 50 kg ± 0.1 kg

Tire pressure: 0.35Mpa ± 0.02Mpa

Type: 3.50-R8 4PR Impact Frame

Test Frame:

Frame Size: 1900mm*1500mm*3570mm

Samples Size: 1930mm*864mm

Lift: Electric

Release: Auto

Maximum impact height: 1200mm (customized)

Rubber Pad Width: 15mm

Rubber Pad Thickness: 3mm

Rubber Pad Hardness: Shore A50

Drop Ball Impact Test Machine

Determination of whether the safety glazing material has a certain minimum strength and cohesion under impact from a small hard object

Hardness steel ball:

a) 2260g ± 20g, diameter of approximately 82.5mm

b) 227g ± 2g, diameter of approximately 38 mm

c) 1040g ± 10g, diameter of approximately 63.5 mm

d) 508g±3g, diameter of approximately 50 mm

Frame Height: 1000mm, 5000mm, 12000mm, Customized

Automatic release and lift.

Power: 220V 50Hz 580W

Supporting fixture:

a) Support Size: 350mm*350mm and 660mm*660mm (Customized)

b) Frame width 15mm

c) Steel box height 150mm

d) Rubber Gasket: thickness 3mm, width 15mm, hardness shore A50

e) Interposed sheet of rubber: thickness 3mm, hardness shore A50

Applied Test Pieces Size: 300mm*300mm 610mm* 610mm

Head-form Test Device

Head Weight: 10kg

Head Size: 500mm*932mm

Impact height: < 1.5m

Samples size: 1100mm*500mm

Felt hat: 90g/89mm/3mm

Frame size: 1400mm*666mm*320mm
