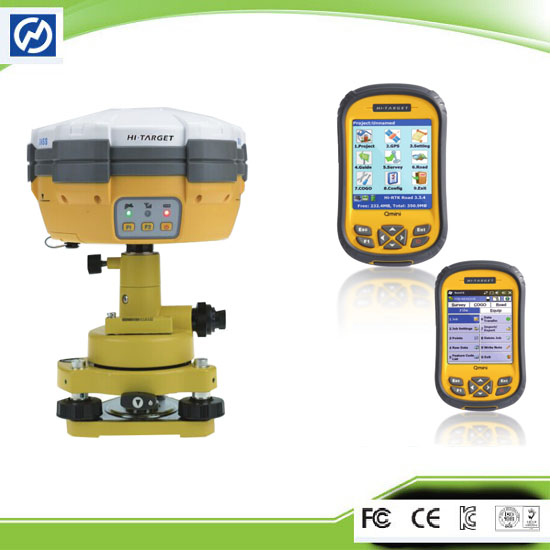

Rugged Design Dual Frequency H32 Gnss Rtk Land Survey System - China

The advantages

Multi Constellation Tracking

72 channels.

The H32 is fully compatible with GNSS constellations to track GLONASS, GALILEO, SBAS as well as GPS.

All- in- one Transceiver UHF Radio

The transceiver UHF radio enables the H32’s working mode to be switchable between base and rover in the same receiver.

The H32 provides excellent performance in UHF RTK operation with its built- in transceiver UHF radio, which has adjustable transmitting power from o.

1 Watt to 2 Watts.

Seamlessly Operation in CORS System

With internal GPRS modem, the H32 works perfectly with corrections from CORS networks in any version of CMR, RTCM without needing to interpret the message but reading seamlessly.

Powerful Battery

Powered by 5000mAh Li- Ion battery.

Static working time 13 - 15 hours

RTK Rover ( UHF/ GPRS) working time 10 - 12 hours

RTK Base working time 8 - 10 hours

Rugged design, IP67

The special latching technology on flexible flat cables ensures trouble- free operation under impact or vibration.

The H32 withstands 2 meters natural fall onto concrete.

Field Controller and Software

There are optional field controllers and software in the H32 package.

The controllers with OS Microsoft Windows Mobile 6.5 are fully compatible with the third party software such as Carlson SurvCE, MicroSurvey FieldGenius, Digiterra Explorer, Esri ArcPad etc.

besides standard field& GIS software made by HI- TARGET.

HI- TARGET controller with WiFi, Bluetooth, and GPRS/ 3G is completely wireless to connect to any device, collect data and connect to server simultaneously and seamlessly.

Post- processing Software

HI- TARGET Geomatics Office ( HGO) software provides total GNSS solution with a complete suite of programs to support HI- TARGET GNSS receivers.

Standard Rinex data and HI- TARGET raw data can be processed flexibly and easily.
