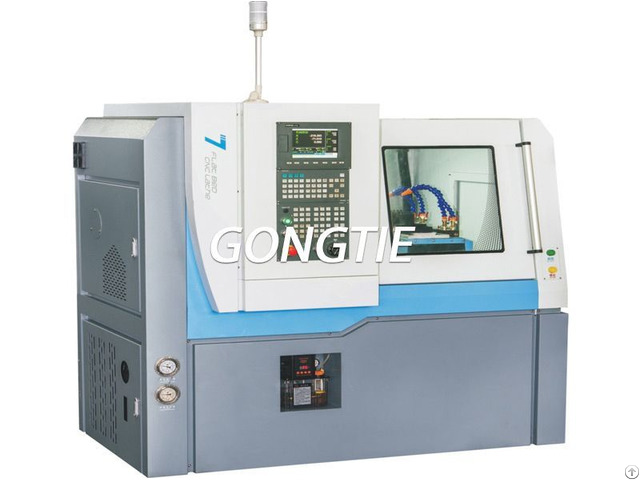

precision cnc lathe with lighting system

Q series-precise linear guide-way with flat bed in blade row : Q5, Q7, Q5C, Q7C

Q5, Q7, with the features of high precision.

high speed.

high efficiency, is the ideal selection for substituting hard rail lathes and imported lathes.

* High precision: importing components from Japan and Taiwan through the advanced assembly and inspection technology, realizing the precise turning with tolerance of μ level.

* High speed: more than 5000RPM for spindle, rapid traverse 20m/min, to reach the high speed machining.

* High-efficiency: with the concept of technique innovation and application oriented, and sustainability improve the overall performance, to make the processing more efficiency.

* Stability: high quality requirement and strict selecting for all the components, to make the machine performance more stable.

Q5C, Q7C, (Synchronous electric spindle)- the best selection for substituting the imported lathes.

* More precision: the complete Synchronous servo configuration for the spindle and the X/Z axis, makes the processing accuracy get a new break through.

* Higher speed: the superior Synchronous electric spindle make the spindle perform higher, faster, and more stable.

* More efficiency: the complete, Synchronous control for the core parts (all the axis), makes the processing efficiency better.

Main parameters UNIT Q5 Q7 Q5C Q7C

Capability Max.

swing diameter mm 400/98 400/98 400/98 400/98 Max.

turning length mm 200 300 200 300 Max.

bar through-hole mm 20(25) 26(35) 20(25) 26(35)

Axis Stroke X-axis travel mm 280 320 280 320 Z-axis travel mm 240 315 240 315

Rapid Traverse X/Z-axis m/min 20 20 20 20

Spindle Spindle nose size N/A A2-4 A2-5 A2-4 A2-5 Spindle through hole diameter mm 35(37) 48 35(37) 48 Spindle servo motor power kW (asynchronous) 2.2/3.7 (asynchronous) 3.7/5.5 synchronous electric spindle synchronous electric spindle Spindle speed range rpm 0～5000 0～5000 0～6000 0～6000 Work piece clamping method N/A homemade collet homemade collet homemade collet homemade collet

Toolholder Number of tools PCS 5 5 5 5 Toolholder type N/A Dovetail row of knives Dovetail row of knives Dovetail row of knives Dovetail row of knives OPT T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool T-slot blade row+live tool Toolholder center height in radial mm 50 50 50 50 Tool size mm 16*16 16*16 16*16 16*16 Boring rod diameter mm 25 25 25 25

Accuracy X\Z axis repeating postioning accuracy mm 0.002 0.002 0.002 0.002

Others Cooling motor capacity L 120 120 120 120 hydraulic box capacity L 60 60 60 60 Required electric power kVA 7 8 7 8 Height from floor to spindle center mm ≈1070 ≈1070 ≈1070 ≈1070 Overall size(L*W*H) mm 1500*1250*1650 1650*1300*1650 1500*1250*1650 1650*1300*1650 Net weight kg ≈1200 ≈1700 ≈1200 ≈1700

Standard tool box, instruction, manual, cooling system, lighting system, lubricating system

Optional collet, chuck, foot switch, programmable blowing function, precision C-axial division, living tool, auto door, loading & unloading system, industrial robot, auto bar feeder, parts catching device, chip conveyor, auto detecting system, auto tool compensation system, high pressure cooling system

We have precision cnc lathe with Parallel hand, precision cnc lathe with Hydraulic system and cnc lathe with Slant Bed with high precision, high speed, high efficiency.

If you need, please contact us.

More Product Please View Hifactory.
