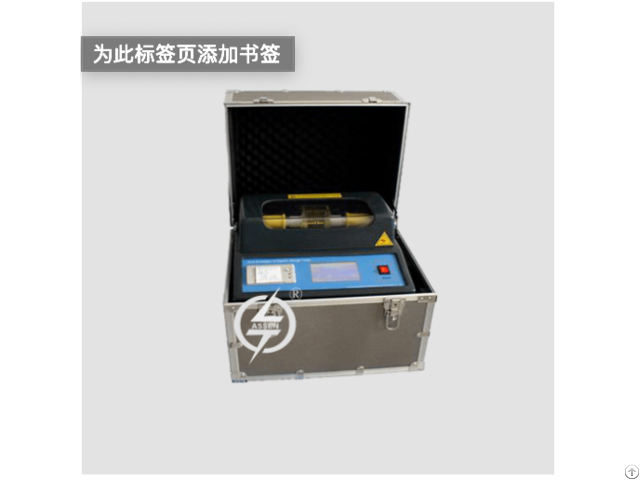

Portable St Series Insulating Oil Breakdown Voltage Tester Dielectric Oi L Testing Bdv O Il Test - China

Portable St Series Insulating Oil Breakdown Voltage Tester Dielectric Oil Tester Bdv Oil Tester Application

It is very easy for customers to measure the breakdown voltage of all kinds of oil.

You can print the test result by the micro printer internal the tester.

Of course, you can upload the test data to PC from RS232 for data analysis.

The special circuit design makes the tester has a good performance at stability and anti-noise.

The tester is light and portable to take away.

Functions:

1 - Breakdown test of user-defined

2 - Proof test

3 - IEC156/IS6792/BS5874/

4 - ASTM D1816 standard test

5 - ASTM D877 standard test

6 - only take 5 minutes for a standard test

7 - reliable and portable

8 - Temperature measurement

9 - Calibration interface for customers

10 - Unloading data to PC and making word report automatically.

11 - Result print Features:

1 - withstand voltage test in the range of 0 ~ 80KV.

2 - Large-screen LCD.

3 - Simple operation

4 - Store 100 experimental results, and display the current environment temperature and humidity.

5 - The whole process is easy to control.

6 - With over voltage, overcurrent, limiting protection, in order to ensure the safe operation.

7 - With a temperature measurement display function and system clock display.

8 - Standard RS232 interface.

9 - PC application software is provided to upload test data to make WORD test report

10 - Menu management, data input are simple and convenient.

11 - The instrument adopts intermediate frequency induction heating and PID temperature control algorithm.

The oil cup and the heating body are non-contact, heating evenly, fast, and easy to control.

12 - Empty electrode cup calibration function.

Measure the capacitance and dielectric loss factor of the empty electrode cup to judge the cleaning and assembly status of the empty electrode cup.

The calibration data is automatically saved to facilitate the accurate calculation of relative permittivity and DC resistivity.

13 - The instrument adopts intermediate frequency induction heating and PID temperature control algorithm.

The oil cup and the heating body are non-contact, heating evenly, fast, and easy to control Specifications:

1 Output voltage AC 0~80KV/AC 0~100KV

2 Rate of voltage rise 2KV/s±10%

3 Measuring precision 3%RDG+0.3%FS

4 Test times setting 1~9

5 Mixing time setting 0~99 second

6 Waiting time setting 0-9 minute 59second

7 Maximum storage capacity 100 groups of test data

8 Test standards IEC60156

9 Display 256*128 LCD

10 Rated power supply AC 220V±10% 50Hz/60Hz

11 Environment temperatures 0-50°C

12 Relative humidity ≤80%RH

13 Size 530×550×530mm

14 Weight 48kg
