Panel Furniture Milling And Drilling Center - China

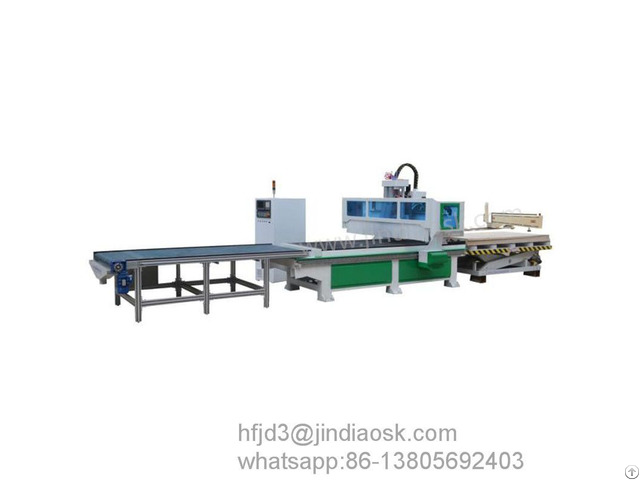

S300 Auto Loading & Unloading Center

Machine Main Parts:

1 - Spindle Power: HSD 9KW air-cooling spindle, with 8pcs disc type tools magazine.

2 - Drilling Head: Italy HSD 5+4 gang drill.

3 - Driving System: XYZ axis Japan Yaskawa servo motor drive, Z-axis with brake.

4 - Control System: Taiwan Syntec, high precision and best stability.

5 - Converter: Zoncn/ Fuling brand.

6 - Cylinder: 10pcs Positioning Cylinders, pneumatic device for loading and unloading platform.

7 - Transmission: Taiwan Hiwin square guide rails (Y 30mm, X/Z 25mm), Lifetime free-lubrication, high precision helical rack gear.

8 - Beam: Reinforcing steel structure.

9 - Cable: MARS special shielded cables for drag chain, anti-static, anti-interference, with good bending resistance.

10 - Limit Switch: Japan Omron.

11 - Electrical Components: French Schneider Brand.

12 - Body Structure: Heavy-duty integral welding steel structure, with tempering aging treatment, which ensure the body durable and never deformation.

With big cover outside.

13 - Table: Overall steel truss structure, good stability, with no distortion; Vacuum table.

14 - Vacuum Pump: 5.5KW.

15 - Software: Be compatible with G-code NC file.

16 - Optional: Loading and unloading platform, Scanning gun, Automatic coding machine, Dust collector.

Performance Features:

1 - Equipped with all the leading international brand components, with carousel tools magazine.

2 - High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.

3 - Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.

4 - Intelligent protection work table can prevent table damages caused by misuse or software errors.

Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.

5 - Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.

Offline operation can be realized.

Applicable Scope:

Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on.
