P F Singleturn Absolute Encoder Fvs58n 032k2r3gn 0013 - Germany
price: 569.00 Dollar US$

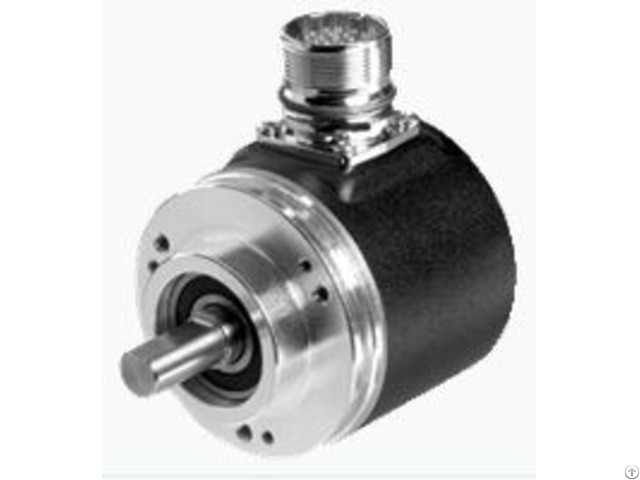

Singleturn absolute encoder FVS58
Industrial standard housing ∅58 mm
13 Bit singleturn
Output code: gray and binary
Short-circuit proof push-pull output
Inputs for selecting counting direction, LATCH, and PRESET
Code change frequency up to 400 kHz
Servo or clamping flange
Operating voltage 10 .
30 V DC
No-load supply current max.
140 mA
Power consumption ≤ 2 W, without output drivers
Linearity ± 0.5 LSB
Output code Gray code, binary code and Gray excess code
Code course (counting direction) cw ascending (clockwise rotation, code course ascending)
Code preparation time 0.3 ms
